Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-29

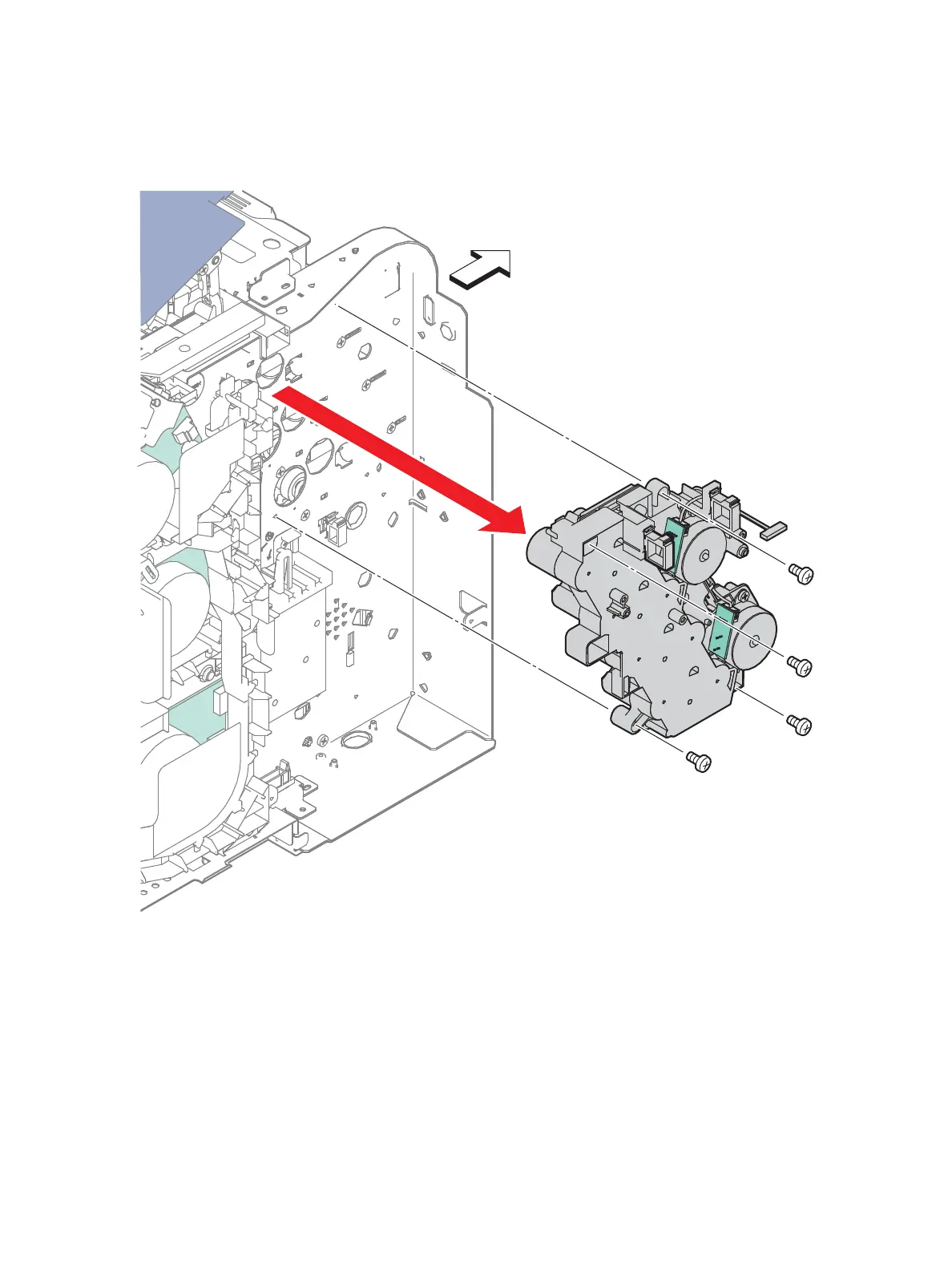

10. Release the clamp of the Upper Dispenser Motor Assembly (PL5.1.1), and release the harness.
11. Remove the four screws (silver, 6mm) that attach the Upper Dispenser Motor Assembly to the
printer and remove the assembly.
s6600-064
Front
