Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-30

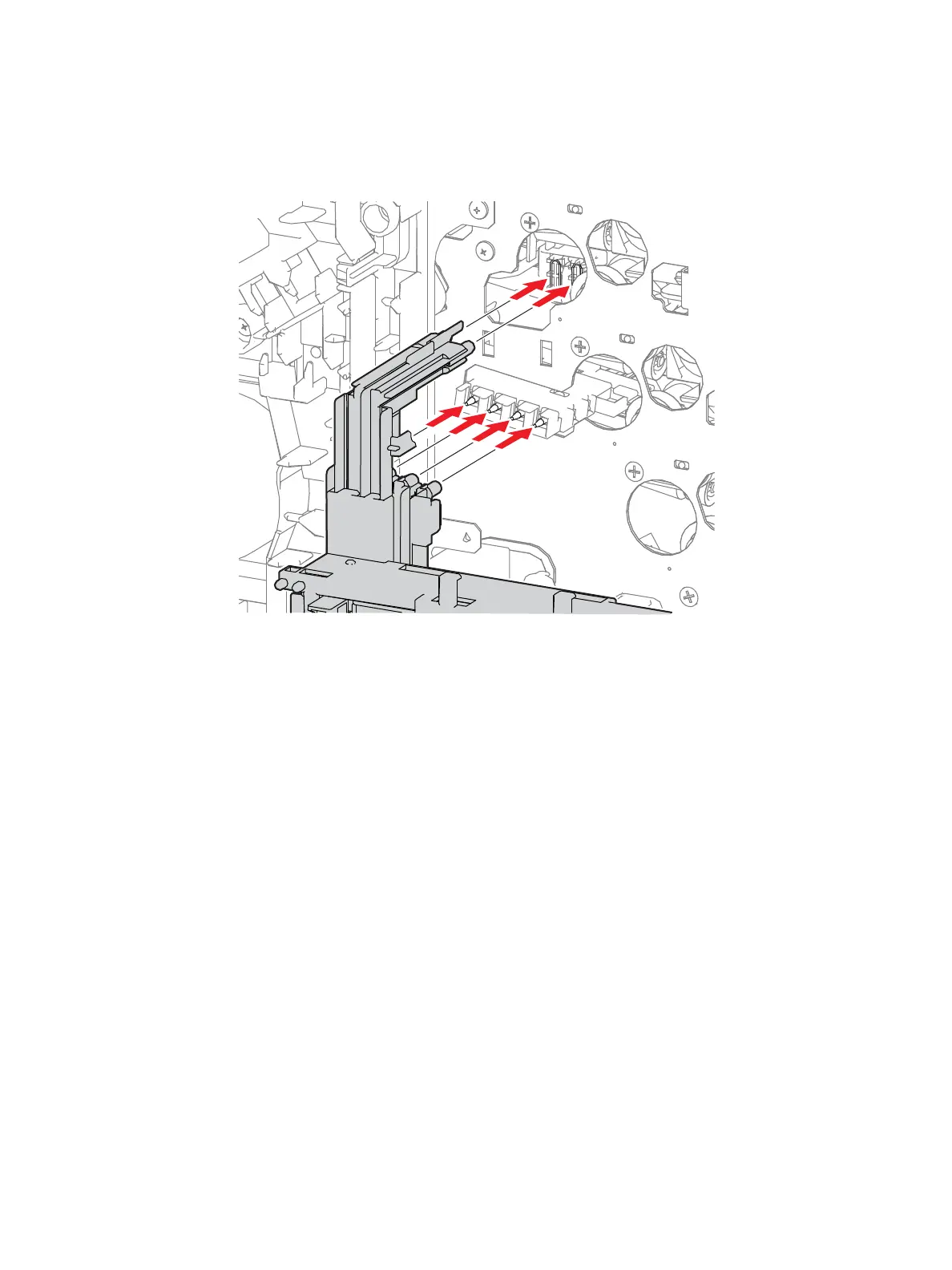

Replacement Note: When installing the Outer Developer Charge Housing Assembly, make sure
that the tips of the six springs are correctly in place. (The Upper Dispenser Motor Assembly is not
shown in the following figure for the sake of clarity.)
