Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-32

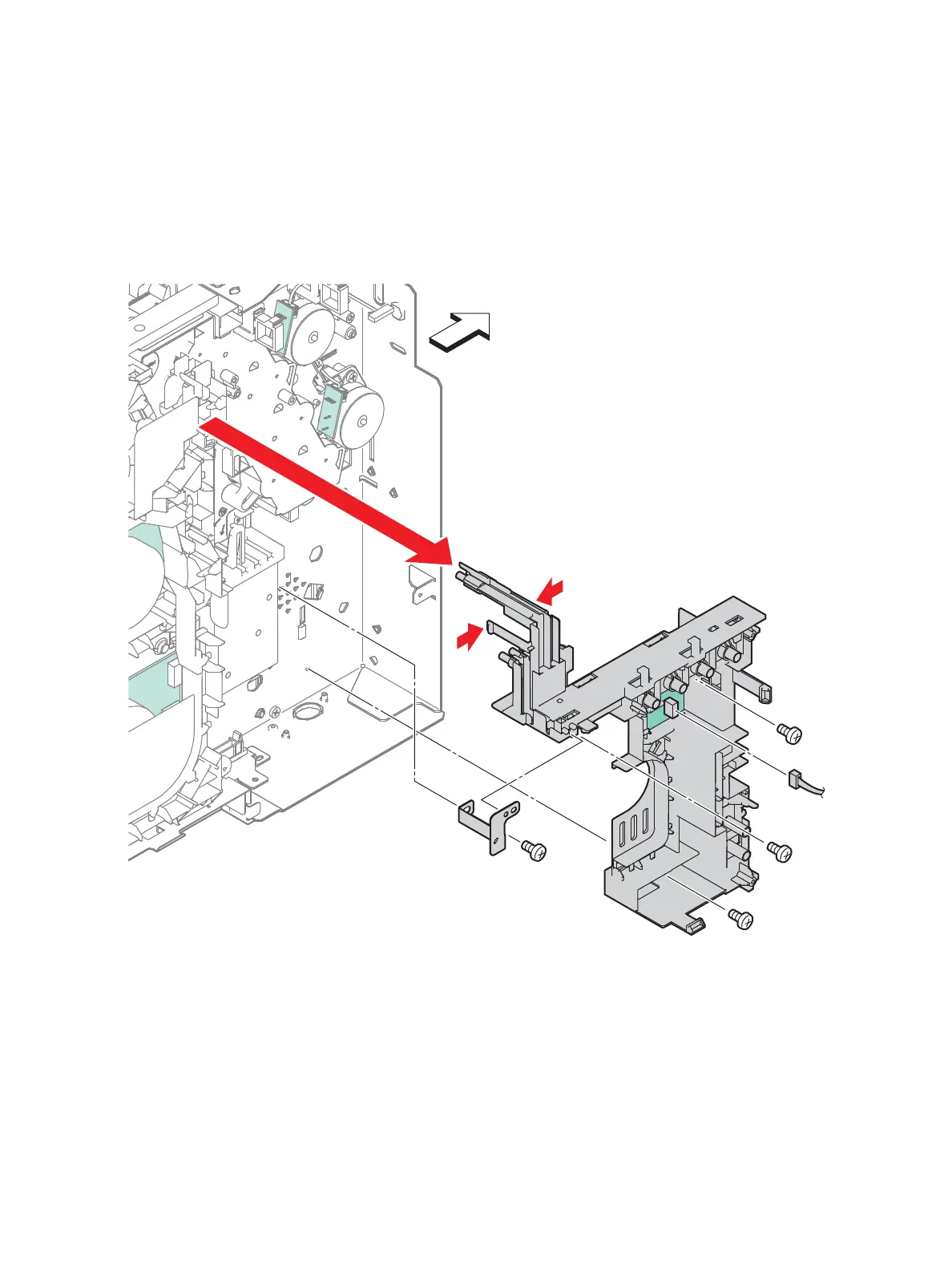

6. Unplug connector P/J251 from the EEPROM Board (PL18.1.43).
7. Remove the screw (silver, 6mm) that attaches the HV Ground Plate (PL18.1.15) to the printer and
remove the plate.
8. Release the harness from the harness guide of the Outer Developer Charge Housing Assembly
(PL18.1.9).
9. Remove the three screws (silver, 6mm) that attach the Outer Developer Charge Housing Assembly
and remove it.
