Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-33

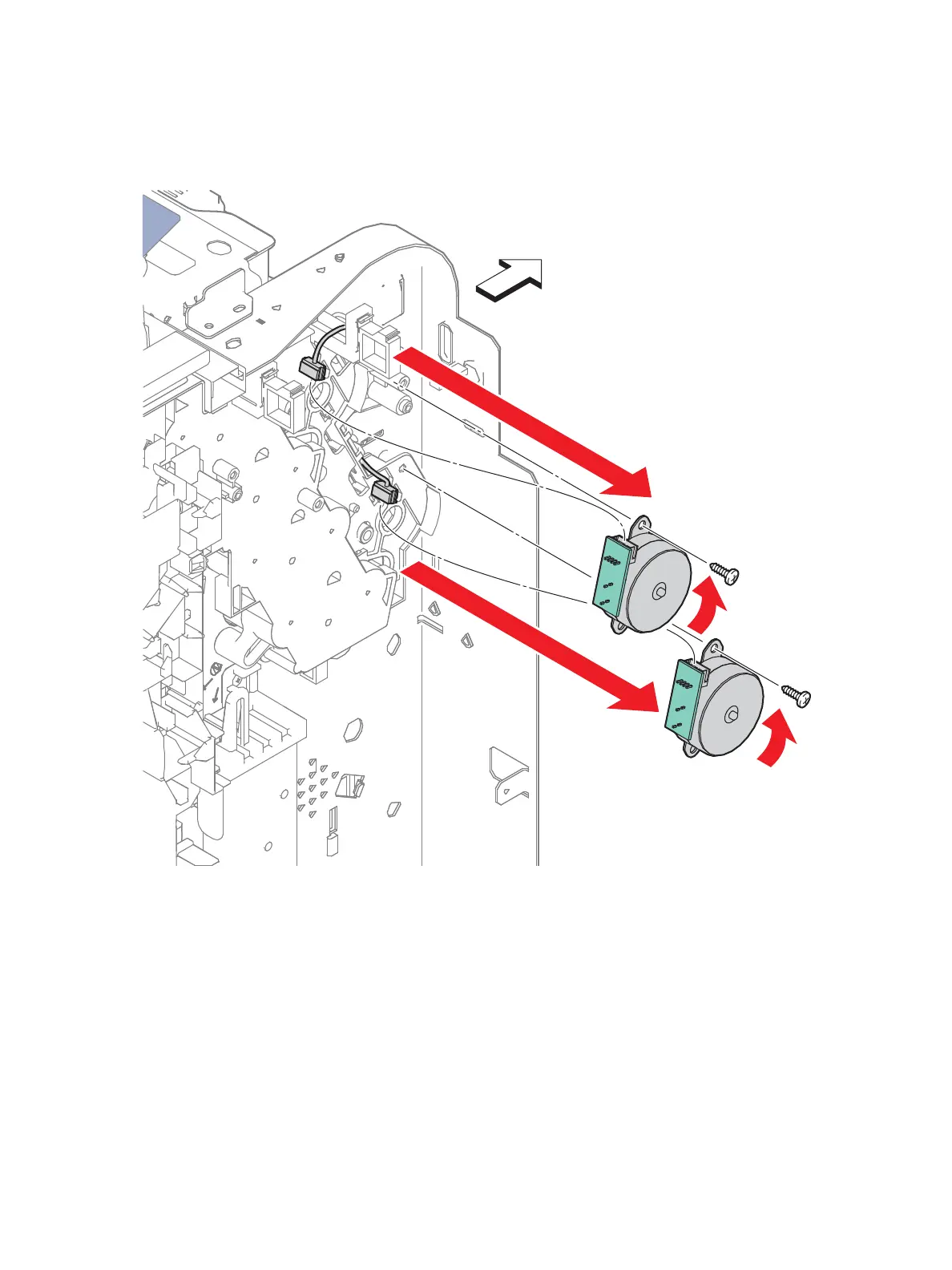

10. Unplug connectors P/J141 and P/J144 connected to the two Dispenser Motors (PL5.1.2).
11. Remove the screw that attaches the Dispenser Motor (silver, tapping, 8mm) and remove the
Dispenser Motor by rotating it counterclockwise.
s6600-065
Front
