Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-105

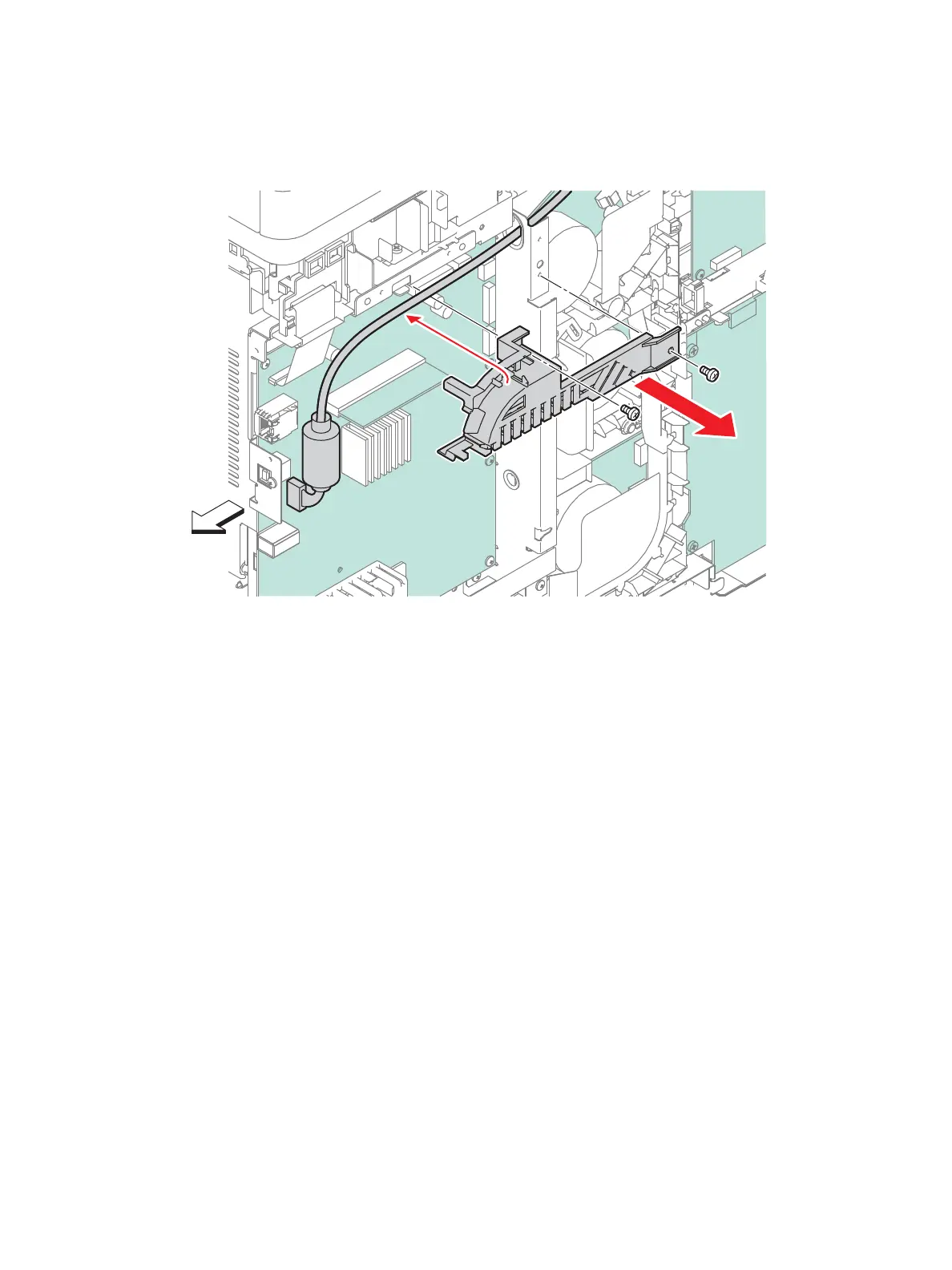

7. Release the harness from the IP Board Top Guard (Bypass Tray Harness Guide).
8. Remove the two screws (silver, 6mm) that attach the IP Board Top Guard (Bypass Tray Harness
Guide) to the printer and remove the guard.
