Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-106

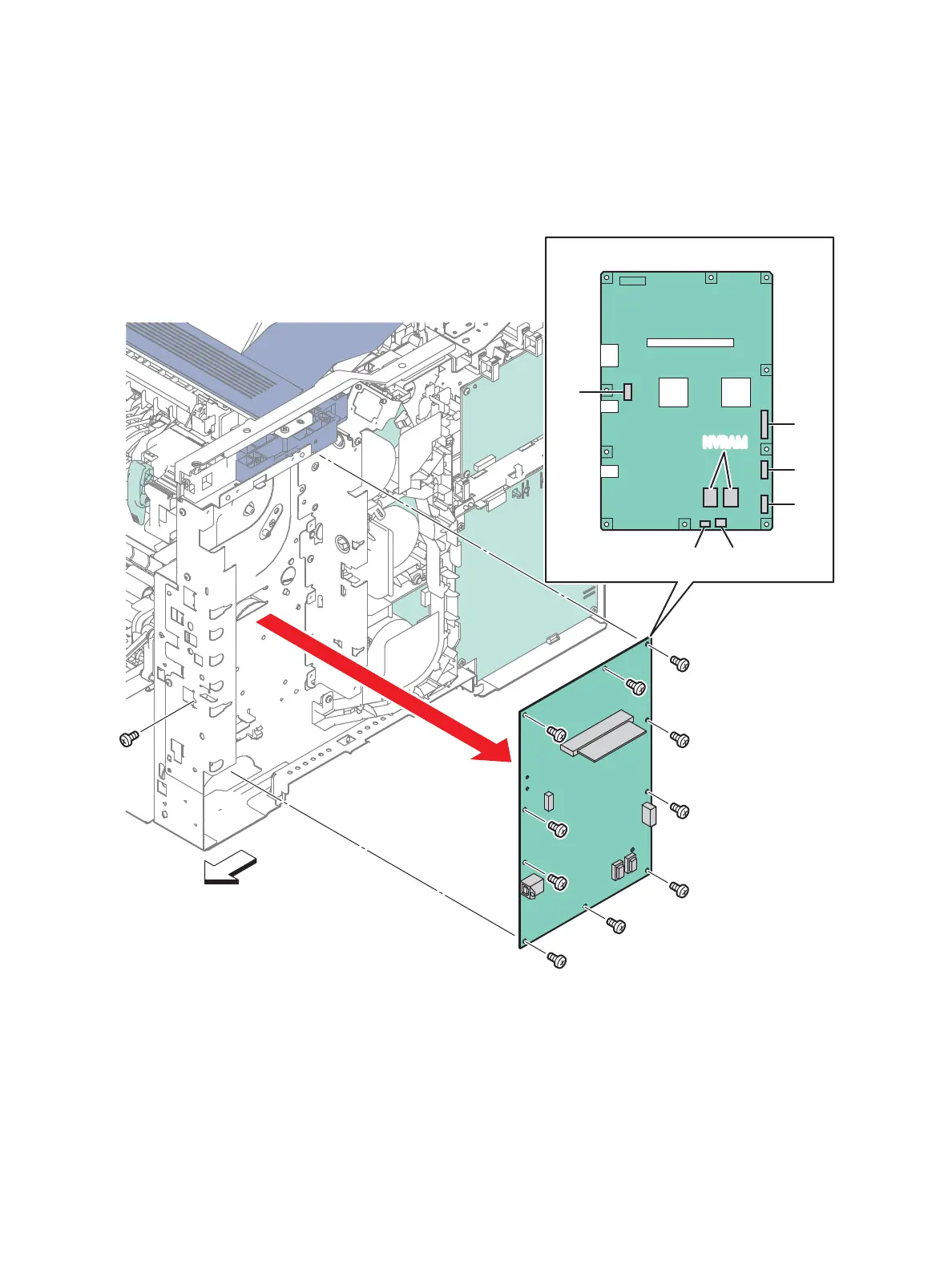

9. Unplug all connectors from the IP Board.
10. Remove the eleven screws (silver, 6mm) that attach the IP Board to the printer (ten from the
board, one from the USB port at the rear) and remove the board.
11. When replacing the IP Board with a new one, transfer the two NVRAM chips, U71 and 72, and any
optional memory to the replacement board.
s6600-189
P/J No.
101
111
402403
12
8
Rear
NVRAMNVRAM
To Next Page
