Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-140

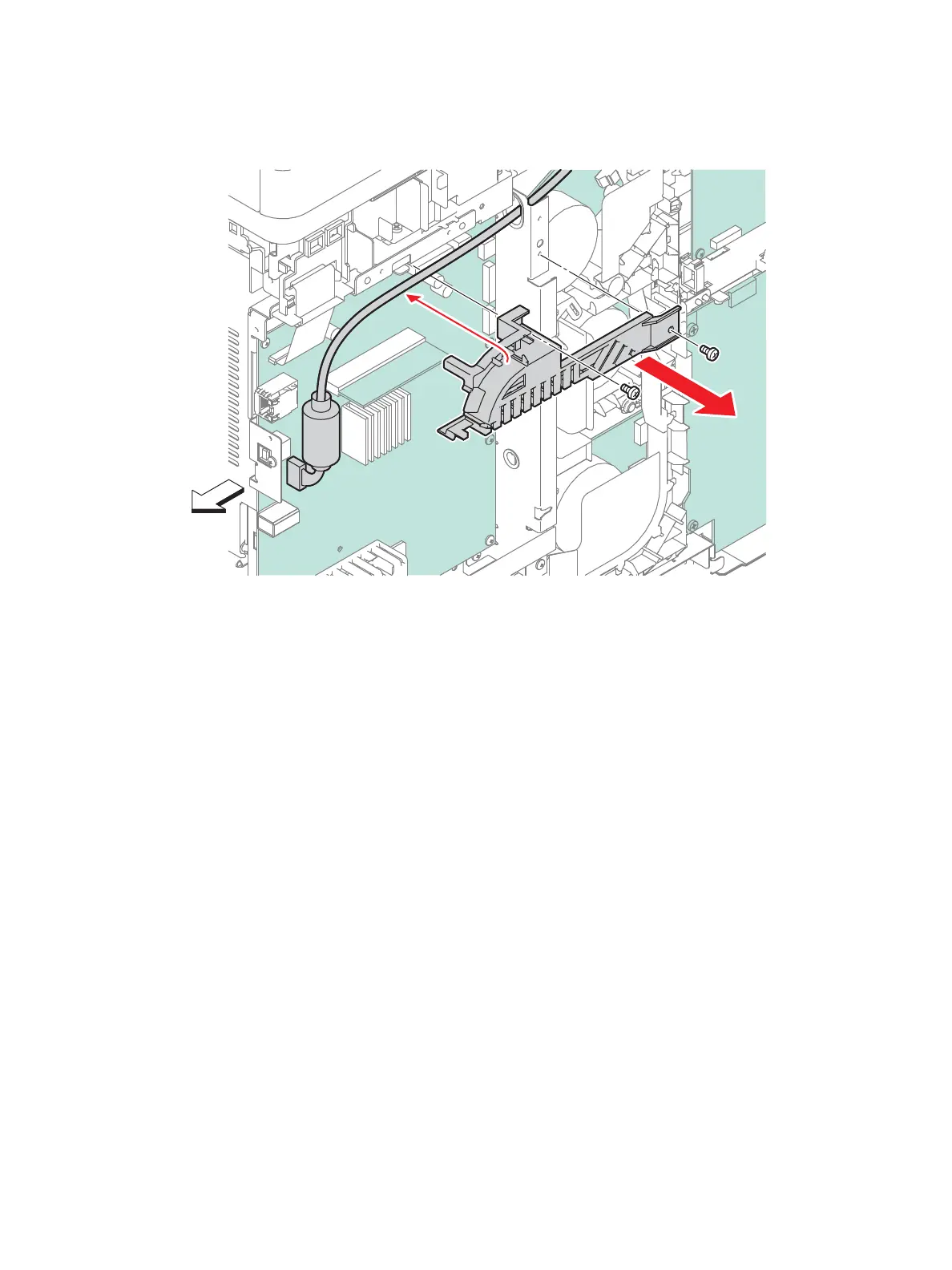

12. Release the harness from the cable guides in the IP Board Top Guard (PL18.1.48).
13. Remove the two screws (silver, 6mm) that attach the IP Board Top Guard and remove it.
s6600-102
