Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-141

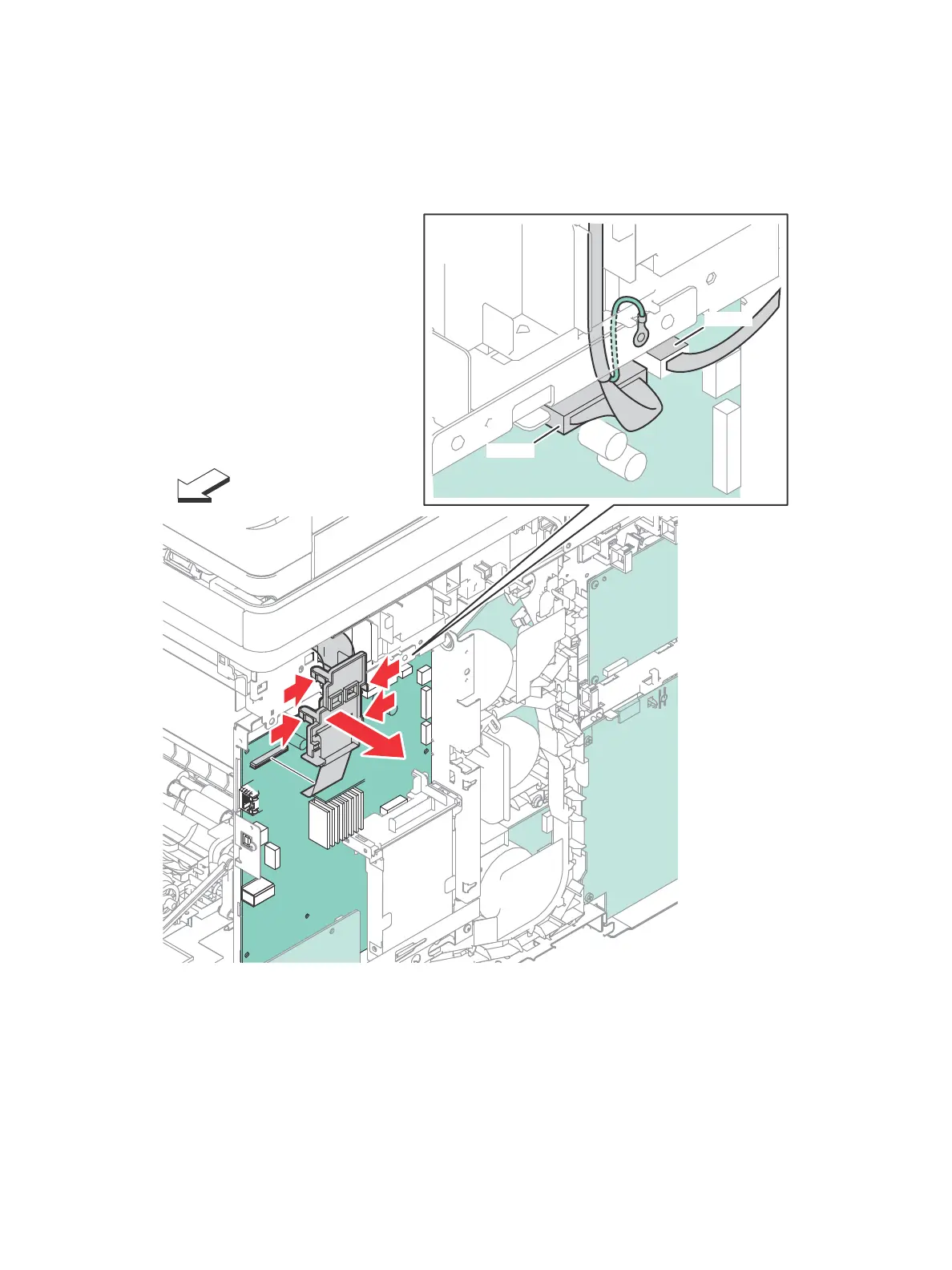

14. Unplug the two connectors (P/J1502 and P/J1501) from the IP Board (PL18.1.22), and then
release the harness from the harness guide.
15. Unplug the flat cable connected to the IP Board and remove the FFC Core Holder (PL19.1.12)
while releasing the four hooks holding it.
s6600-095
Rear
P/J1502
P/J1501
