Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-142

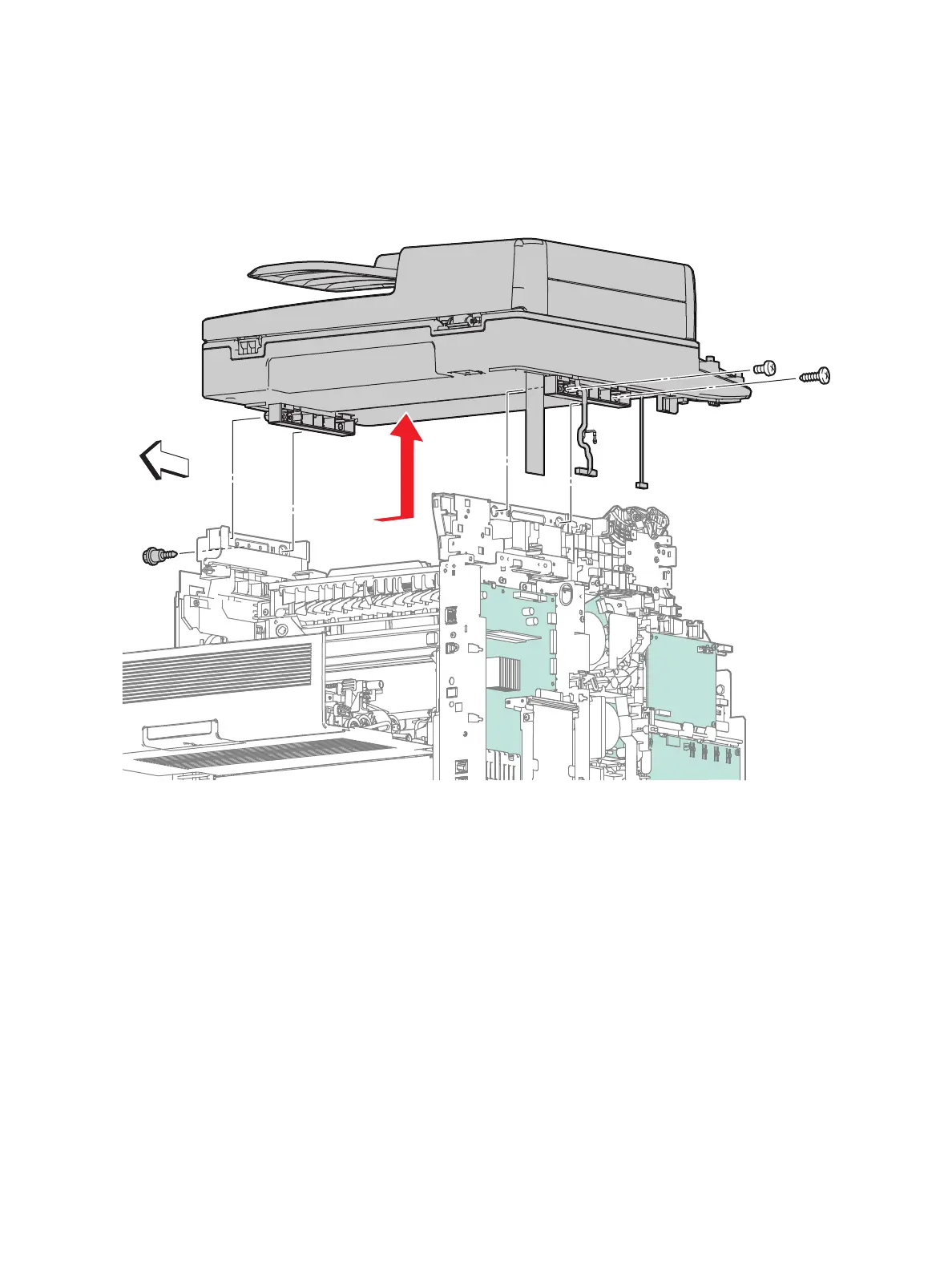

16. Remove the screws (one silver, 6mm; and one silver, tapping, 8mm) that attach the left side of the
Scanner Assembly.
17. Remove the special screw (silver, tapping, 8mm) that attaches the right side of the Scanner
Assembly.
18. Slide the Scanner Assembly to the left until the four bosses are released and lift it off the printer.
To Next Page
