10-9
Chapter 10. PLC Link Communication

Cyclic data transfer (C7 → PLC)
Used for monitoring the C7 data on the PLC.
In this example, C7 data is converted to data with 1 digit after the decimal point and
transferred to D0000200 to D0000201 periodically.

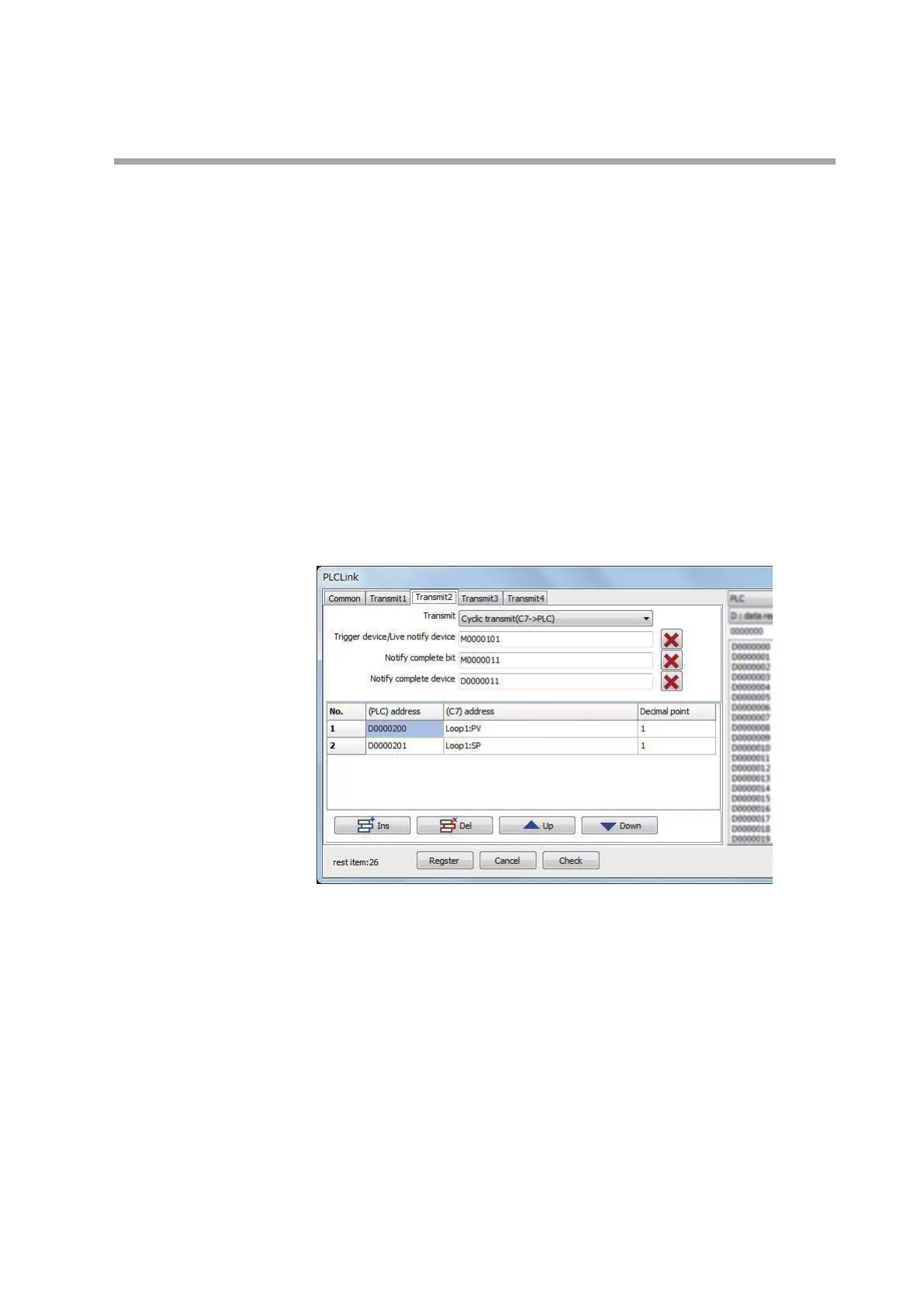

 Transfer operation settings
Transfer type Cyclic data transfer (C7 → PLC)
Live notification device M0000101
Device to receive completion notification bit M0000011
Device to receive completion notification data D0000011
 Transfer data settings
Loop1: PV Decimal place 1 → D0000200
Loop1: SP Decimal place 1 → D0000201
