Chapter 10. PLC Link Communication

Triggered data transfer (PLC → C7)
Used for writing from the PLC to the C7 parameters at timing determined by the
PLC.
This example shows the transfer of M0000016 and M0000017 to the C7 mode when
M0000050 changes from OFF to ON.

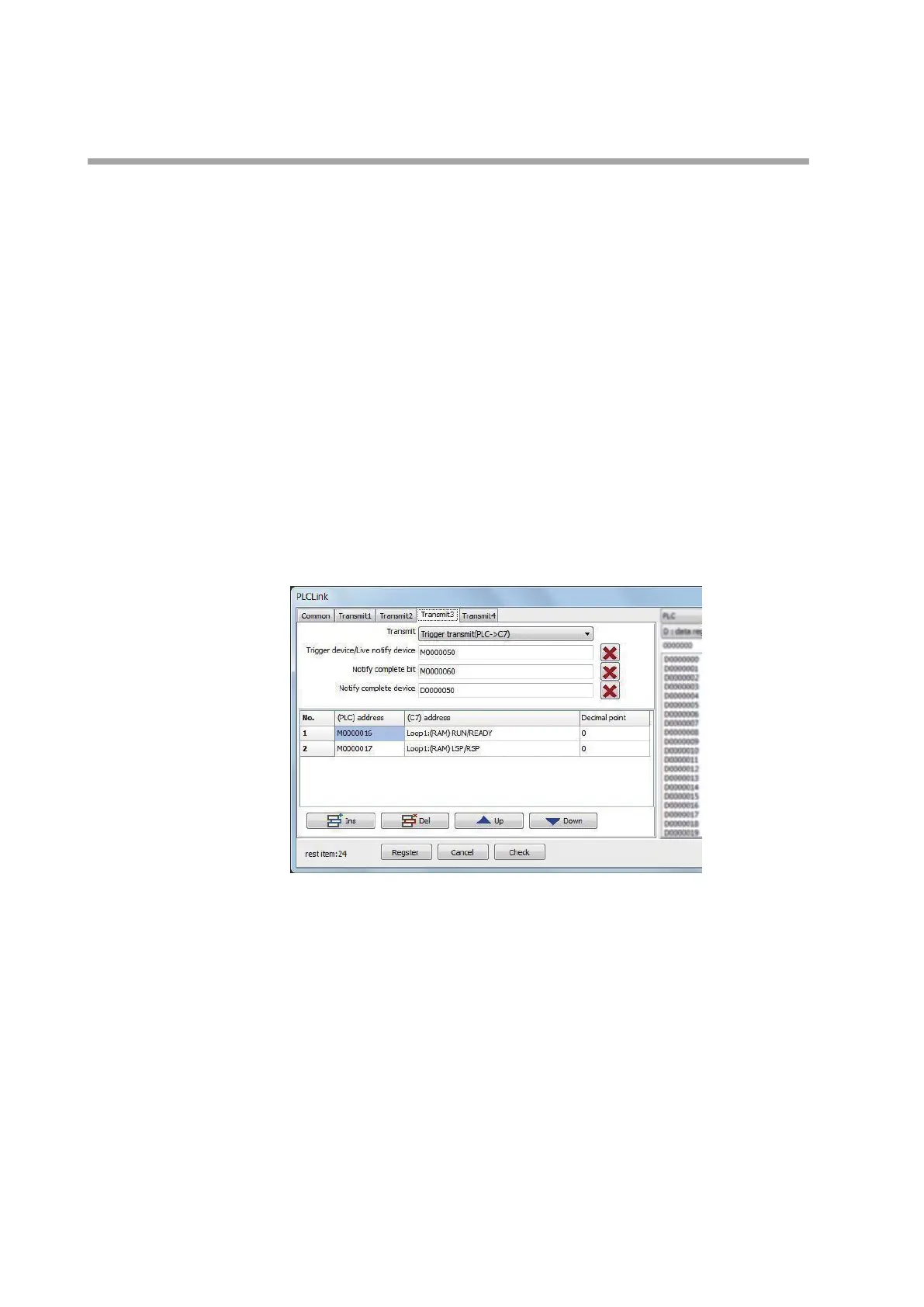

 Transfer operation settings
Transfer type Cyclic data transfer (PLC → C7)
Trigger device M0000050
Device to receive completion notification bit M0000060
Device to receive completion notification data D0000050
 Transfer data settings
M0000016 → Loop1: (RAM) RUN/READY Decimal place 0
M0000017 → Loop1: (RAM) LSP/RSP Decimal place 0
