Chapter 10. PLC Link Communication

Triggered data transfer (C7 → PLC)
Used for writing from the C7 to the PLC data at a C7 event.
This example shows the transfer of the C7 data to D0000070 and D0000071 when
Event 1 of the C7 changes from OFF to ON.

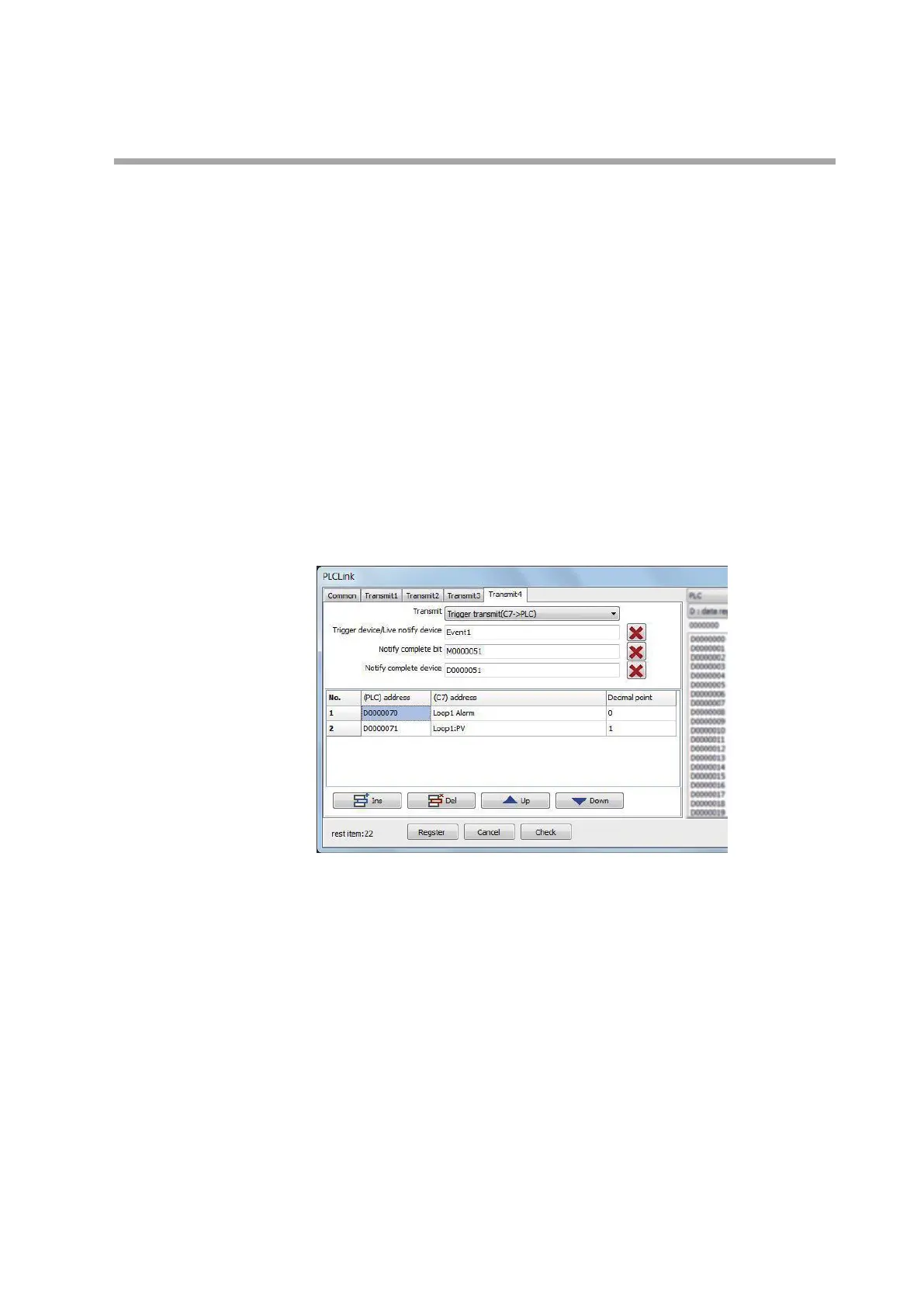

 Transfer operation settings
Transfer type Cyclic data transfer (C7 → PLC)
Trigger device Event 1
Device to receive completion notification bit M0000051
Device to receive completion notification data D0000051
 Transfer data settings
Loop1: Alarm Decimal place 0 → D0000070
Loop1: PV Decimal place 1 → D0000071
