10-21
Chapter 10. PLC Link Communication
Setting item Setting
Communication Data Code Binary Code
Initial Timing Always wait for OPEN (Communication
possible at STOP time)
Input Format DEC
IP Address 192.168.0.1
Send Frame Setting Ethernet (V2.0)
TCP Existence Confirmation Setting Use the KeepAlive
Enable Online Change Check the checkbox.
>> The Network Parameter Ethernet/CC IE/MELSECNET Sheet Quantity
Setting window appears.

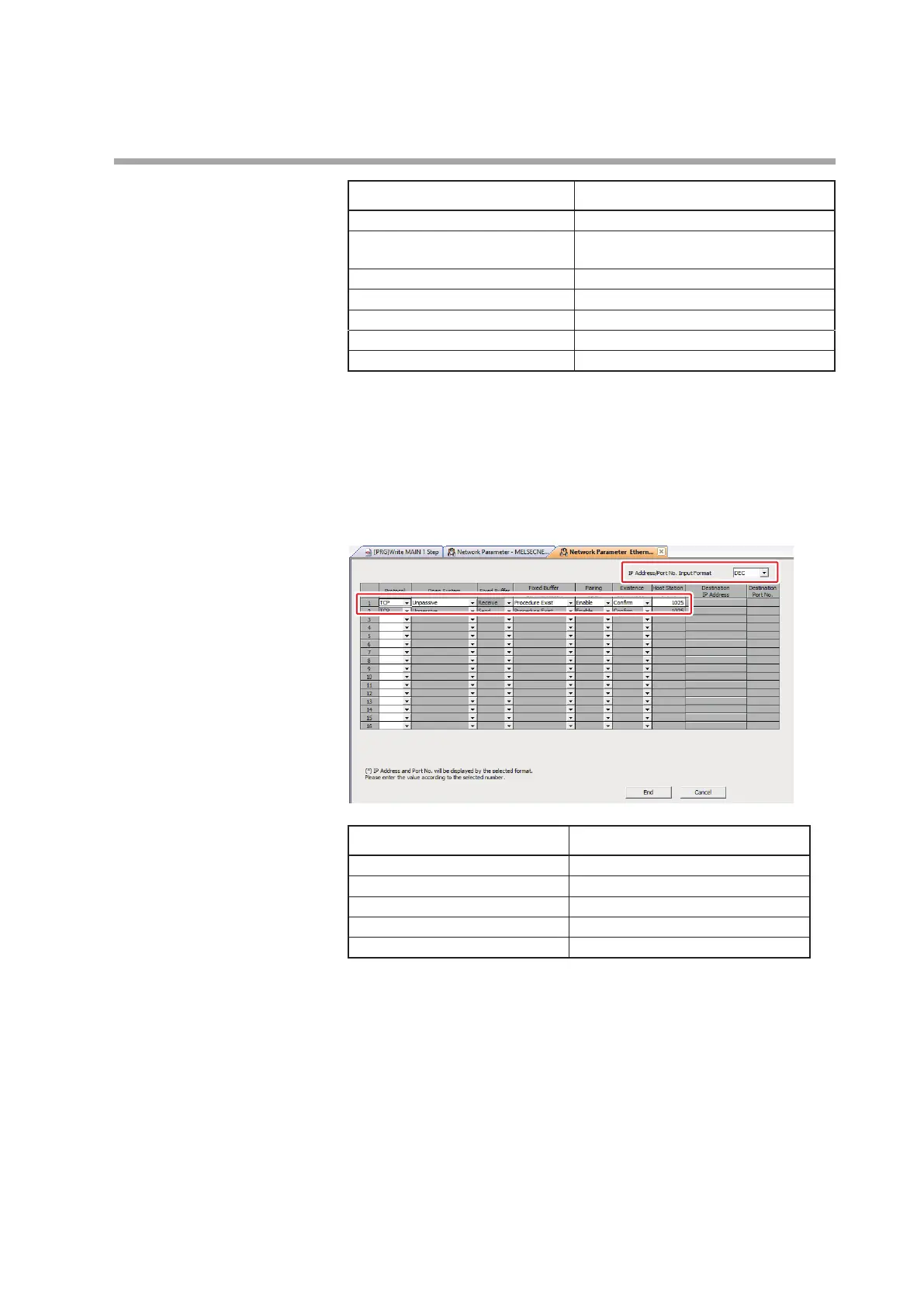

(7) Click the [Open Setting] button in the table.
>> The Network Parameter Ethernet Port Open Setting window appears.
(8) Configure the port settings on the first row.
Setting item Setting
Port No. Input Format DEC
Protocol TCP
Open System Unpassive
Fixed Buffer Communication Procedure Exist
Host Station Port No. 1025
To Next Page
