AP Servo Installation, Configuration, and Calibration
10-6 SkyView System Installation Guide - Revision AA
Push-Pull Servo Dimensions
Use the following dimensions (in inches) for reference when planning and implementing your
installation.

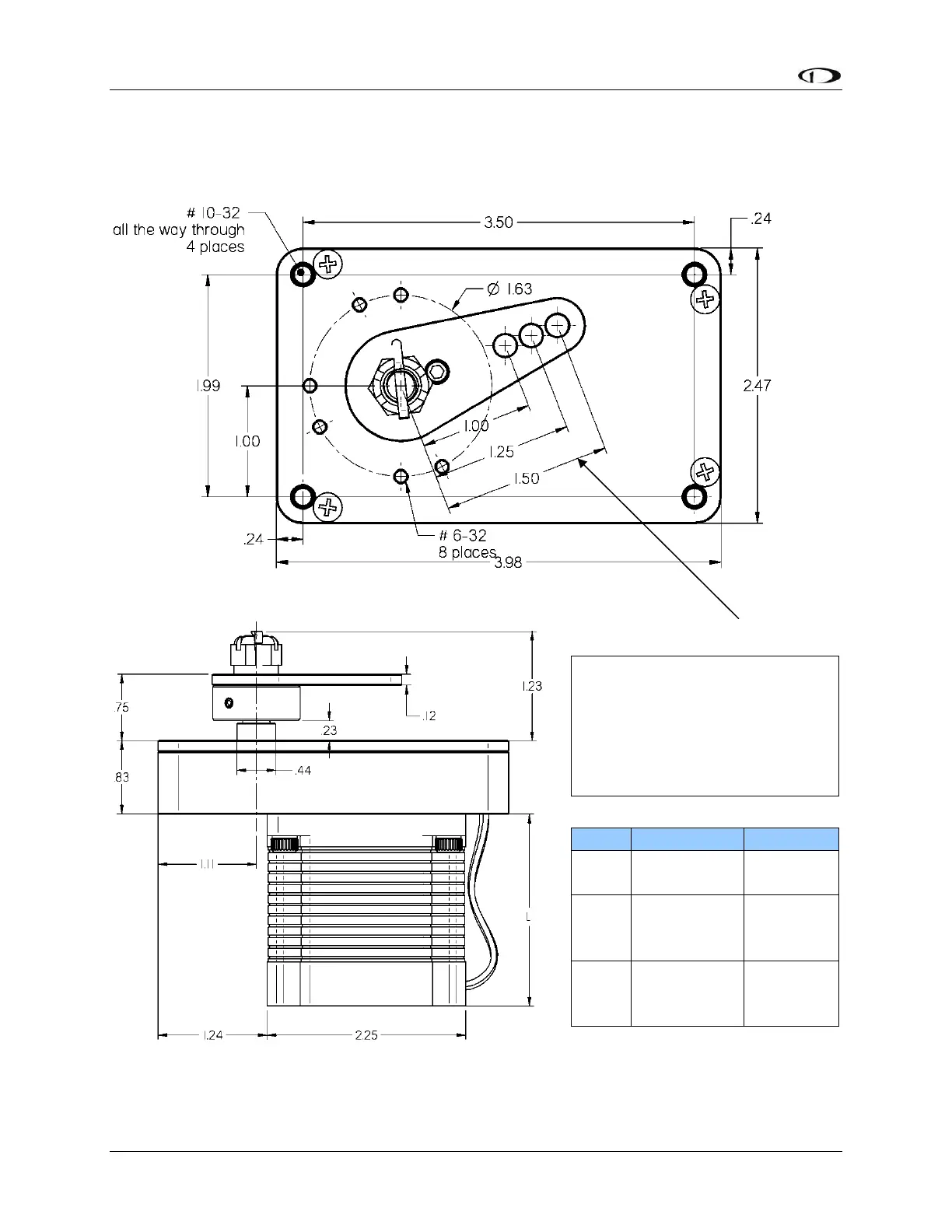

Figure 106 – Servo Top Down Dimensions – See Note Below Regarding Arm Length
Figure 108 – Servo Side Dimensions See Chart at Right
Long-arm variants (not
needed in most
installations) have linkage
mount holes at 1.5”
(38.1mm), 1.75” (44.5mm),
and 2.0” (50.1mm)
L
Weight
SV32
2.17”
(55.1mm)
2 lb.
(.91 kg)
SV42
3.10”
(78.7mm)
3 lb.
(1.36
kg)
SV52
4.02”
(102.1mm)
4 lb.
(1.81
kg)
Figure 107 – Servo Dimensional Notes
