SV-ARINC-429 Installation and Configuration
SkyView System Installation Guide - Revision AA 12-7

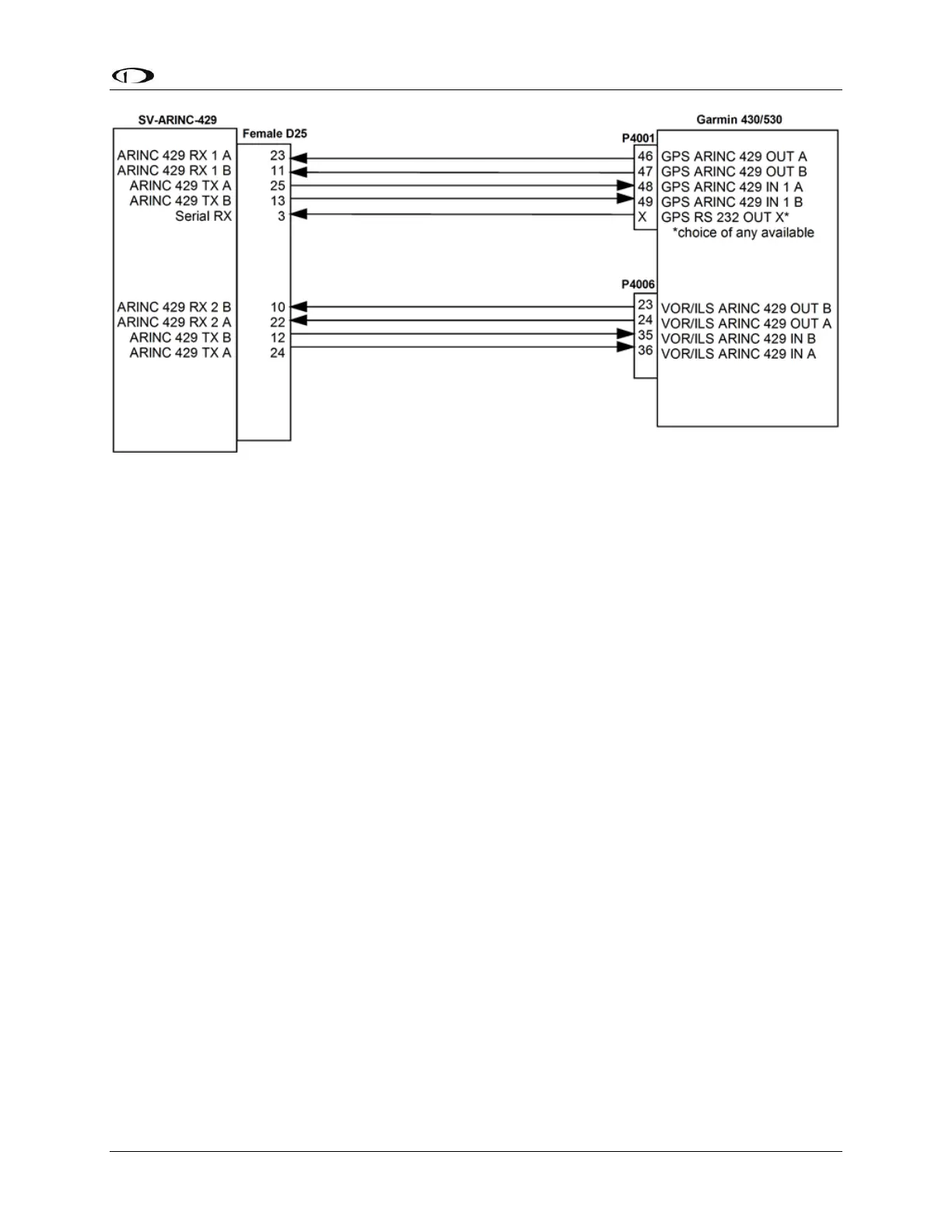

Figure 151 – Garmin 430/530 SV-ARINC-429 Connections
Additional Garmin 430/530 Configuration Information
The following are the typical Garmin and SkyView configuration settings when this combination
of products is used:
Garmin Settings
"Main ARINC 429 Config" page
In 1: High | EFIS / Airdata
In 2: Unused by SkyView, configure as needed for other equipment
Out: High | GAMA 429
SDI: Common
VNAV: Enable Labels
"VOR / LOC / GS ARINC 429 Config" Page
TX: High
RX: High
SDI: Common
DME: Unused by SkyView
“MAIN RS232 CONFIG” Page
Chan X (where X is the physically connected port) Output: Aviation
Optional (ADS-B)
If a Dynon Avionics SV-XPNDR-261 is being used for ADS-B Out capability: Another 430/530
serial output should be set to “ADS-B+ OUT” format. That serial port should be connected to
the SV-XPNDR-261’s pin 3 through a 1.21k resistor as described in the SV-XPNDR-261/262
Installation and Configuration. Finally, set SETUP > TRANSPONDER SETUP > GPS DATA to DIRECT
(GARMIN ADS-B/GARMIN ADS-B+).
