SV-ARINC-429 Installation and Configuration
12-8 SkyView System Installation Guide - Revision AA
SkyView Settings
SETUP MENU > SYSTEM SETUP > ARINC-429:
(Configure MODULE 1 and MODULE 2 independently)
> INPUT SPEED: HIGH
> INPUT 1: GPS x
> NAVIGATION SOURCE DISP NAME: (user selectable, 7 characters. The name entered here is
displayed as the HSI source and the Flight Plan Source (if this device outputs a flight plan).
> INPUT 2: NAV x
> NAVIGATION SOURCE DISP NAME: (user selectable, 7 characters. The name entered here is
displayed as the HSI source and the Flight Plan Source (if this device outputs a flight plan).
> OUTPUT SPEED: HIGH
> ALLOW AUTO SWITCH: YES (LABEL 100P)
Setting ALLOW AUTO SWITCH: to YES (LABEL 100P) (which is the default, including after
upgrading Software to v10.0 or later) allows the 430/530 to tell SkyView to switch from GPS to
ILS or back when on an ILS overlay approach - SkyView will display whatever mode the 430/530
tells SkyView to be in. When in this mode and not on an approach, switching between the NAV
function and GPS function must be performed from the 430/530.
If you want to manually select GPS and NAV from the 430/530, as you have done prior to v10.0,
SETUP MENU > SYSTEM SETUP > ARINC-429 > ALLOW AUTO SWITCH: NO.

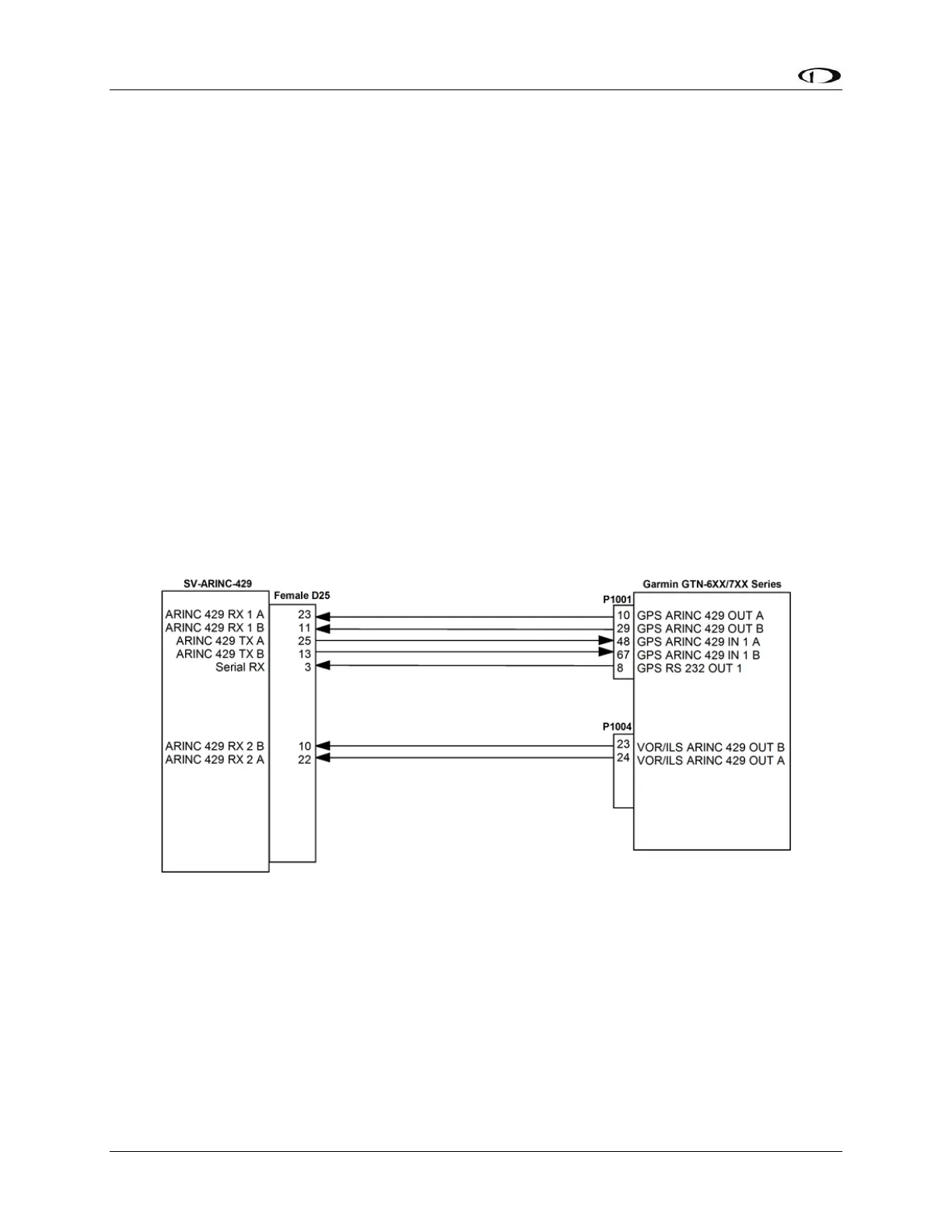

Figure 152 – Garmin GTN Series SV-ARINC-429 Connections
Additional Garmin GTN Series Configuration Information
The following are the typical Garmin and SkyView configuration settings when this combination
of products is used:
Garmin Settings
"ARINC 429 Configuration" page
In 1: High | EFIS Format 2
In 2: Unused by SkyView, configure as needed for other equipment
To Next Page
