Dynon Avionics SkyView Classic

To Next Page

To Previous Page

SV-ARINC-429 Installation and Configuration

12-10 SkyView System Installation Guide - Revision AA

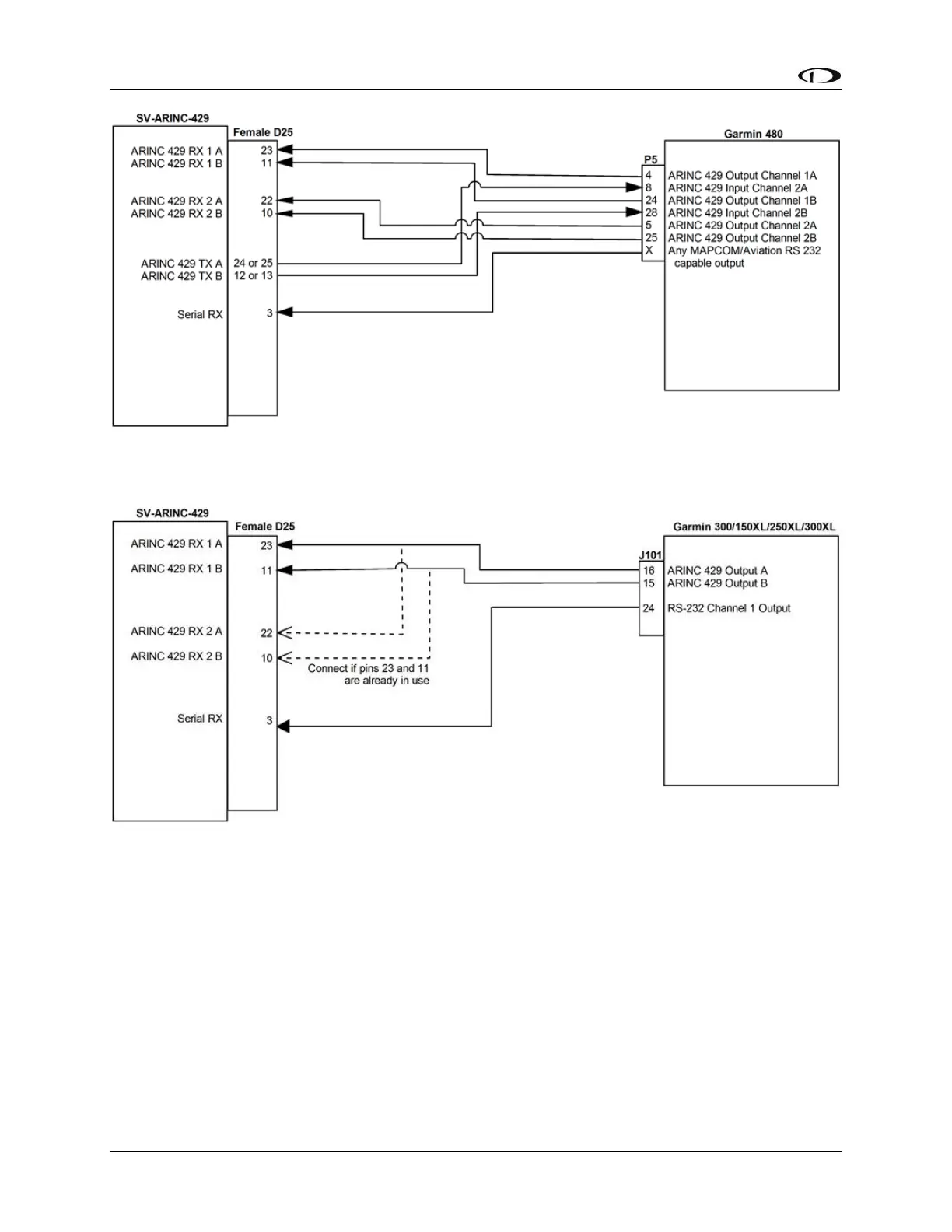

Figure 153 – Garmin 480 SV-ARINC-429 Connections

Figure 154 – Garmin 300/150XL/250XL/300XL SV-ARINC-429 Connections
