Appendix C: Wiring and Electrical Connections
SkyView System Installation Guide - Revision AA 23-5

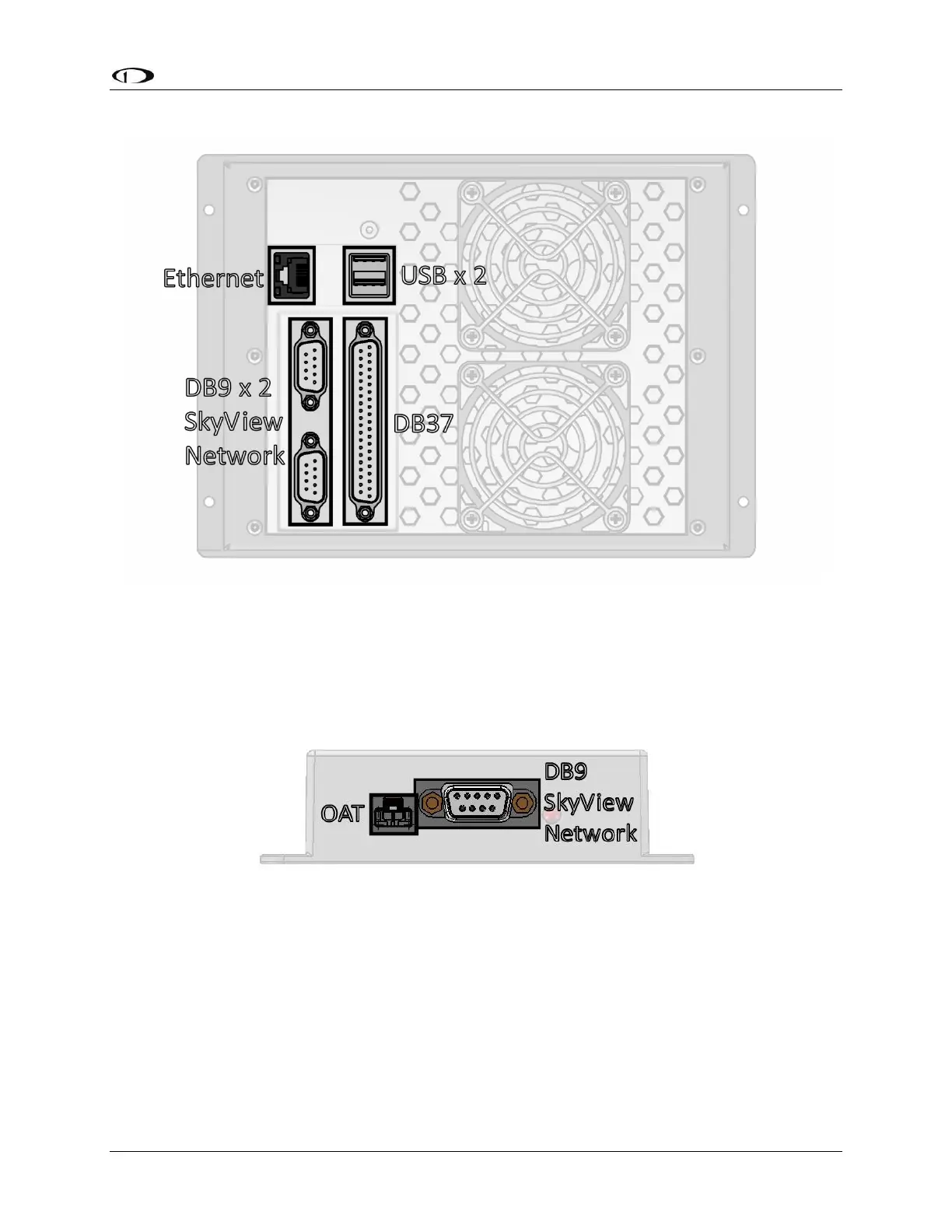

Figure 212 – SkyView Display Connectors
A SkyView ADAHRS module (SV-ADAHRS-200/201) has two connectors as illustrated in Figure
213:
One D9M SkyView network connector
One 2-pin OAT sensor connector (only compatible with the SV-OAT-340)
Figure 213 – SV-ADAHRS-200/201 Connectors
The SkyView EMS Module (SV-EMS-220/221) has three connectors as illustrated in Figure 214:
One D9M SkyView network connector
One D37M for various transducer connections
One D25F for thermocouple connections
