Appendix C: Wiring and Electrical Connections

SkyView System Installation Guide - Revision AA 23-9

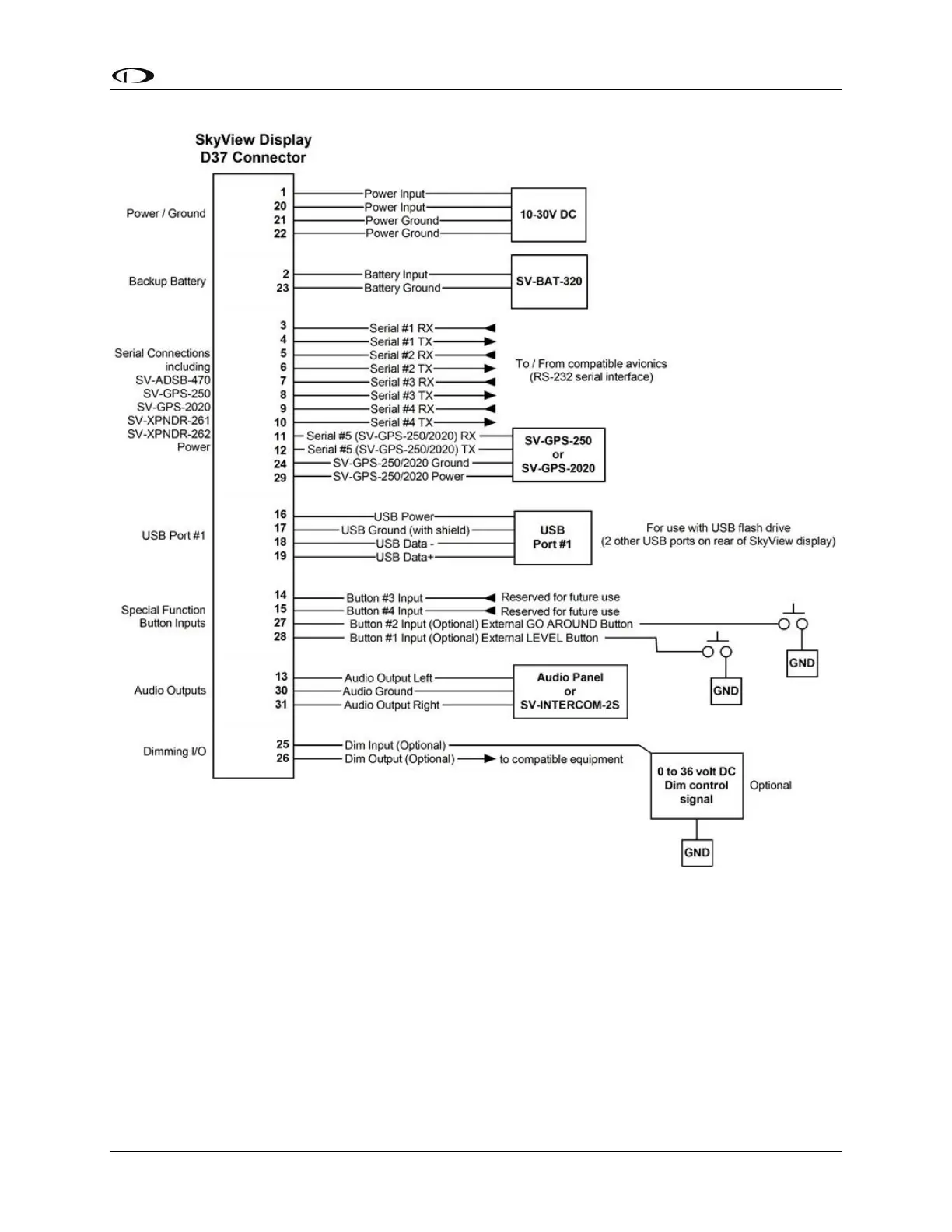

Figure 217 – SkyView Display’s D37M Connector Electrical Connections
