Appendix C: Wiring and Electrical Connections
23-10 SkyView System Installation Guide - Revision AA
SkyView Network Pinout (SV-NET-XXXX)
SkyView Network
D9M Pin
SkyView Network
Cable Wire Color
Description
1
Green
SkyView Network Data 1 A
2
Black
SkyView Network Ground 1
3
White with Black
Stripe
SkyView Network Ground 2
4
White with Blue
Stripe
SkyView Network Data 2 B
5
Orange
SkyView EMS Auxiliary Voltage
6
Blue
SkyView Network Data 1 B
7
Red
SkyView Network Power 1
8
White with Green
stripe
SkyView Network Data 2 A
9
White with Red
stripe
SkyView Network Power 2

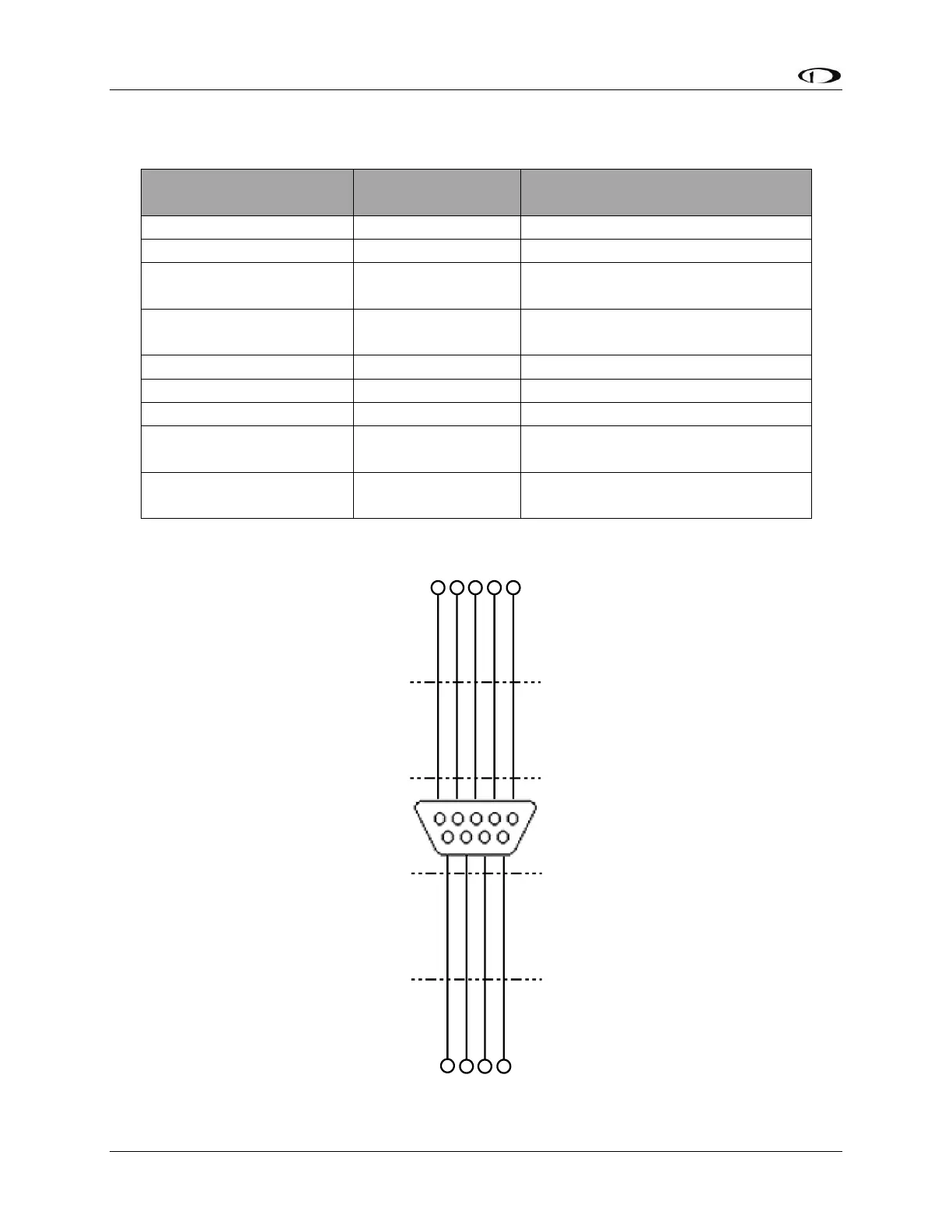

Table 115 – SkyView Network D9M Pinout and Wire Harness Colors
Figure 218 – SkyView Network D9M Pin Insertion View (Rear)
1 2 3 4 5
6 7 8 9
Blue
Red
White/Green
White/Red
Green Black White/Black White/Blue Orange
Data 1 A Ground 1 Ground 2 Data 2 B EMS Aux
Data 1 B
Power 1
Data 2 A
Power 2
