SkyView Display Installation and Configuration

4-4 SkyView System Installation Guide - Revision AA

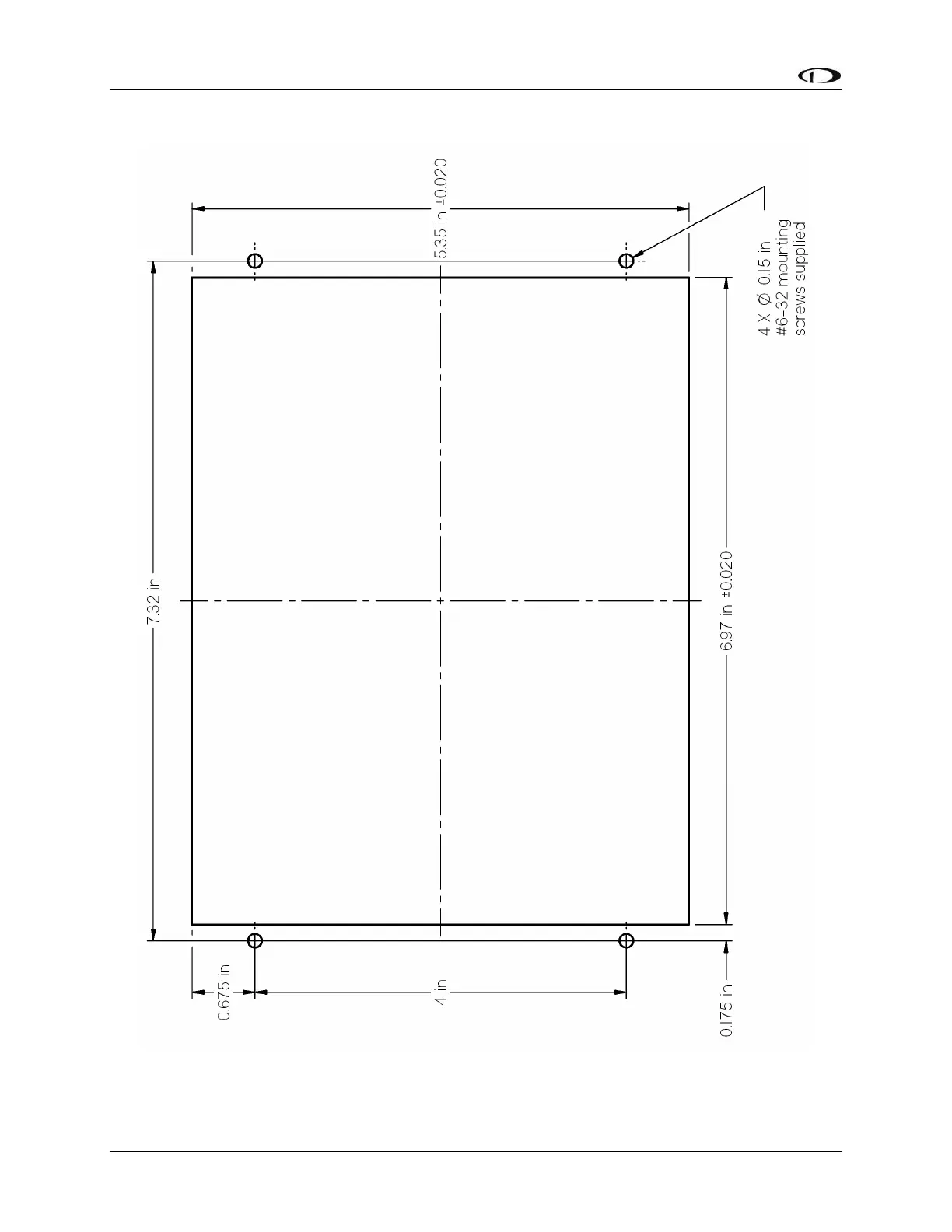

Figure 20 – SV-D600 and SV-D700 Panel Cutout and Mounting Hole Dimensions - NOT ACTUAL SIZE
