number of DYNON will automatically have their settings and tail number
synchronized with the display the configuration is performed from. After
configuration, all displays’ tail numbers and settings will be synchronized, and
further setup tasks can be performed from any display.
When you first power up your SkyView display, it will look similar to the screen below (SkyView
HDX and SkyView SE displays will be slightly different). This is normal – you have not yet
performed a SkyView Network Configuration for the SkyView display(s) to recognize your
ADAHRS, EMS, and other SkyView Network modules.

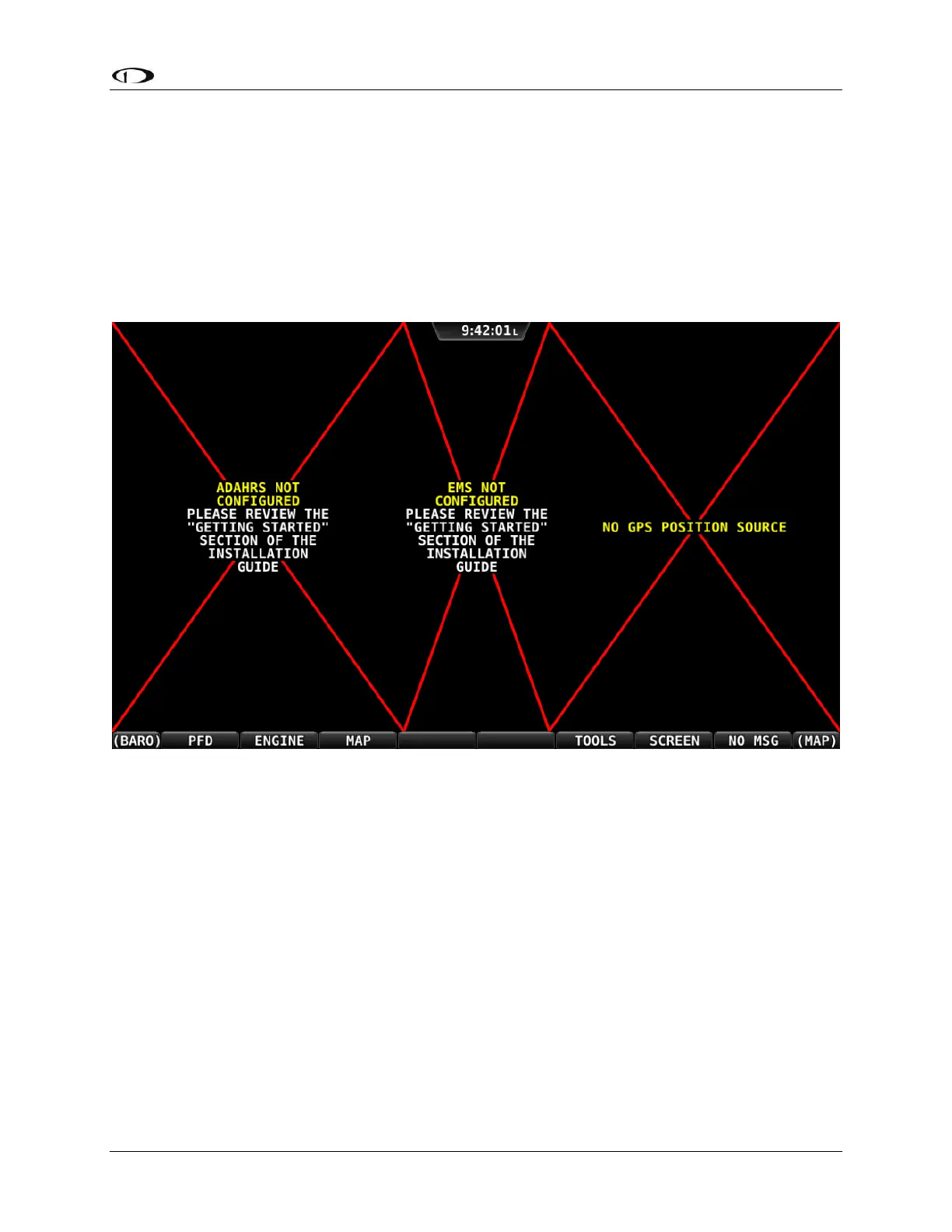

Figure 33 – New SkyView Classic display, SkyView Network not yet configured
Use the following procedure to configure a SkyView network:
1. Push buttons 7+8 to access the SETUP MENU.
2. Navigate to the CONFIGURE… Page (SETUP MENU > SYSTEM SETUP > SKYVIEW NETWORK
SETUP > CONFIGURE…).
3. Press DETECT. A successful network configuration yields the screen in Figure 34 (depending
on the units installed, your SkyView system’s network devices will look different and display
different Software versions).
4. Press FINISH to close the screen and return to the Network Setup Menu.
