SkyView Display Installation and Configuration

4-20 SkyView System Installation Guide - Revision AA

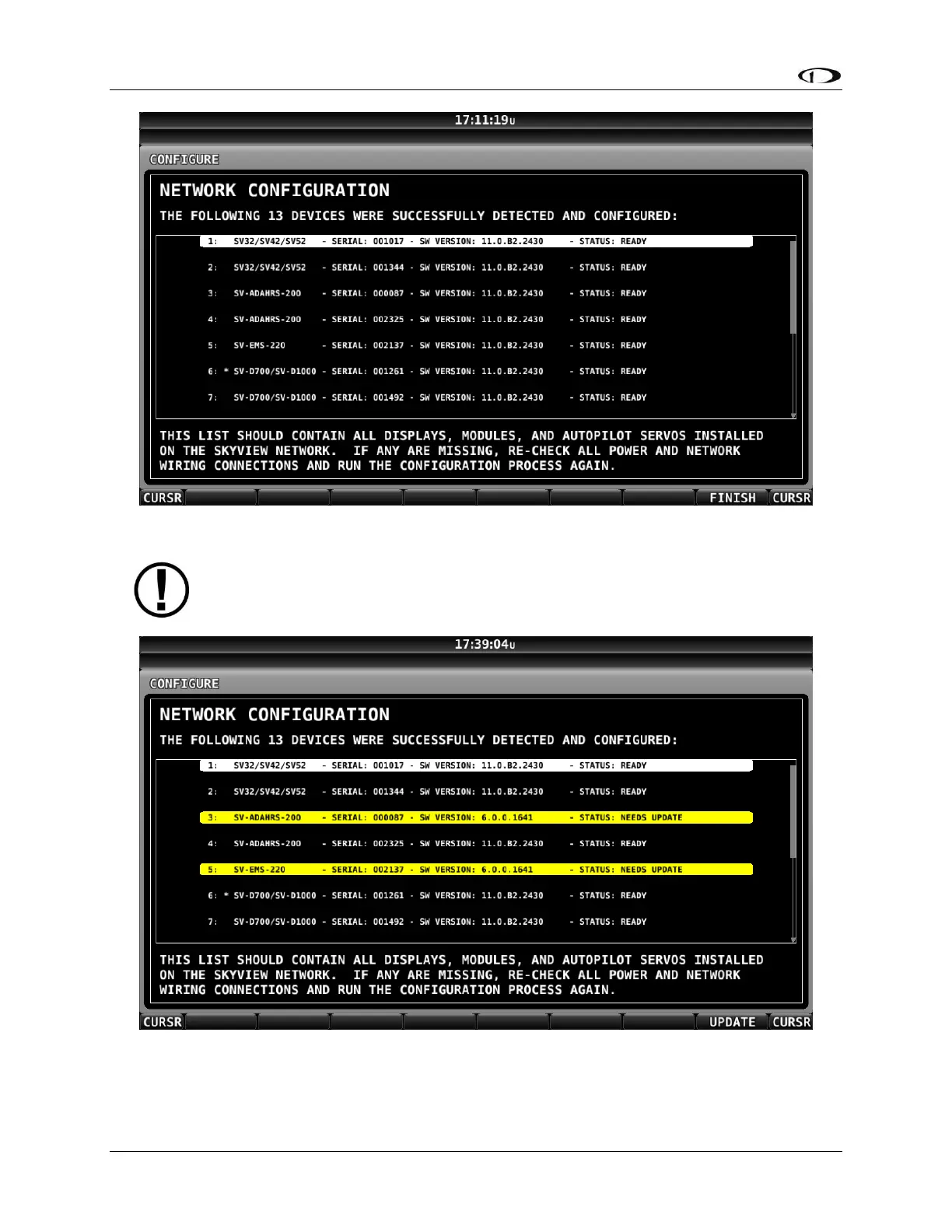

Figure 34 – Successful SkyView Network Configuration Screen

If the SkyView network is successfully configured, but Software versions on

equipment are not synchronized, you will see a screen that is similar to Figure 35.

Figure 35 – SkyView Network Configuration with Software Update
