System Overview

SkyView HDX System Installation Manual - Revision E 2-11

The optional Engine Monitoring System (EMS) includes many sensor options mounted to

the engine and airframe. Figure 8 illustrates the EMS system and how the sensors and

signal sources relate to the EMS module.

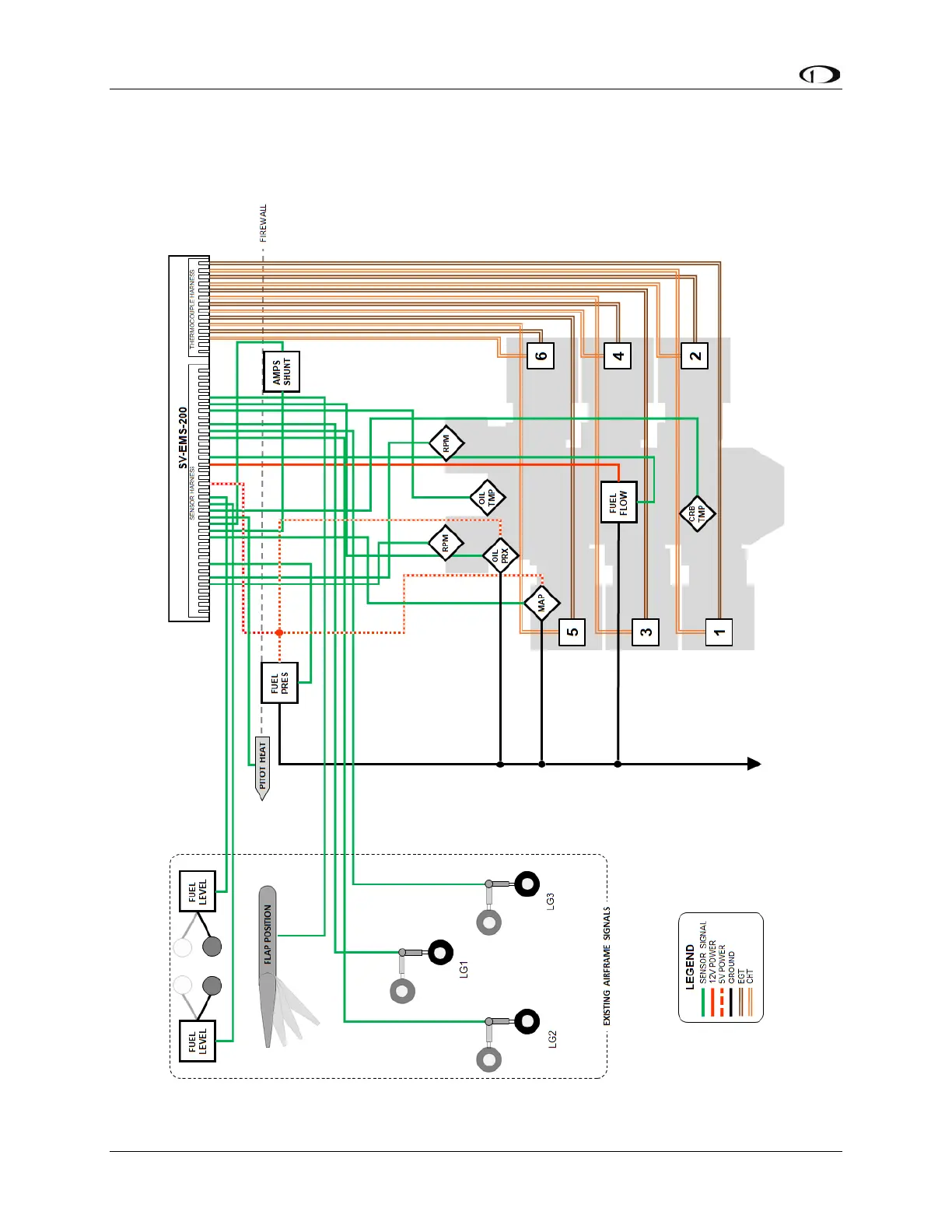

Figure 8: Engine Monitoring System Diagram with Optional Sensors
