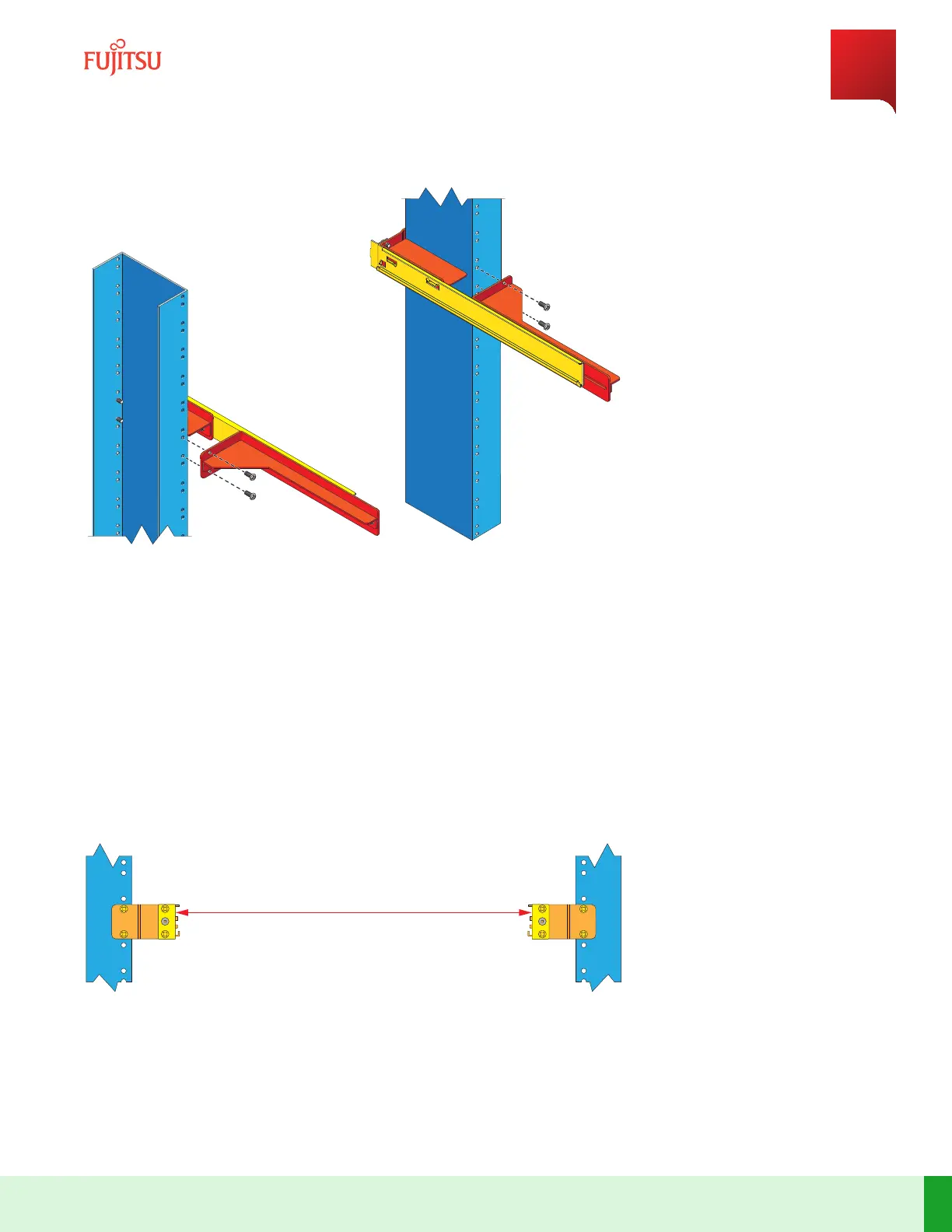

Figure 41
Aaching Rear Flange 23-Inch, 2-Post Rack Bracket
Step 6
Verify front and rear anges on each bracket are installed in the correct rack posion.
Step 7
Verify the installed brackets on the 23-inch, 2-post rack are spaced 440 mm apart and that brackets are level, as
shown in the following gure.
Note: Conrm the bracket spacing is correct at the front and rear of the rack. Use the bolts on the anges to
adjust the spacing and lt of the brackets.
Inner Width: 440 mm
Front View
s8102bp_1
Figure 42
Bracket Spacing 23-Inch, 2-Post Rack
Step 8
Tighten all bolts completely on each bracket.
Equipment Installation
Install 23-Inch, 2-Post Rack Rail Kit
116
Release 19.1.1 · Issue 1.1, May 2021
Fujitsu and Fujitsu Customer Use Only
