Fujitsu 1FINITY L100 - Page 132

Power Adapter and
Attachment Screws
(2) Connecting Hooks
(1 Hook on Each Side)
FNC000523_Rev_01

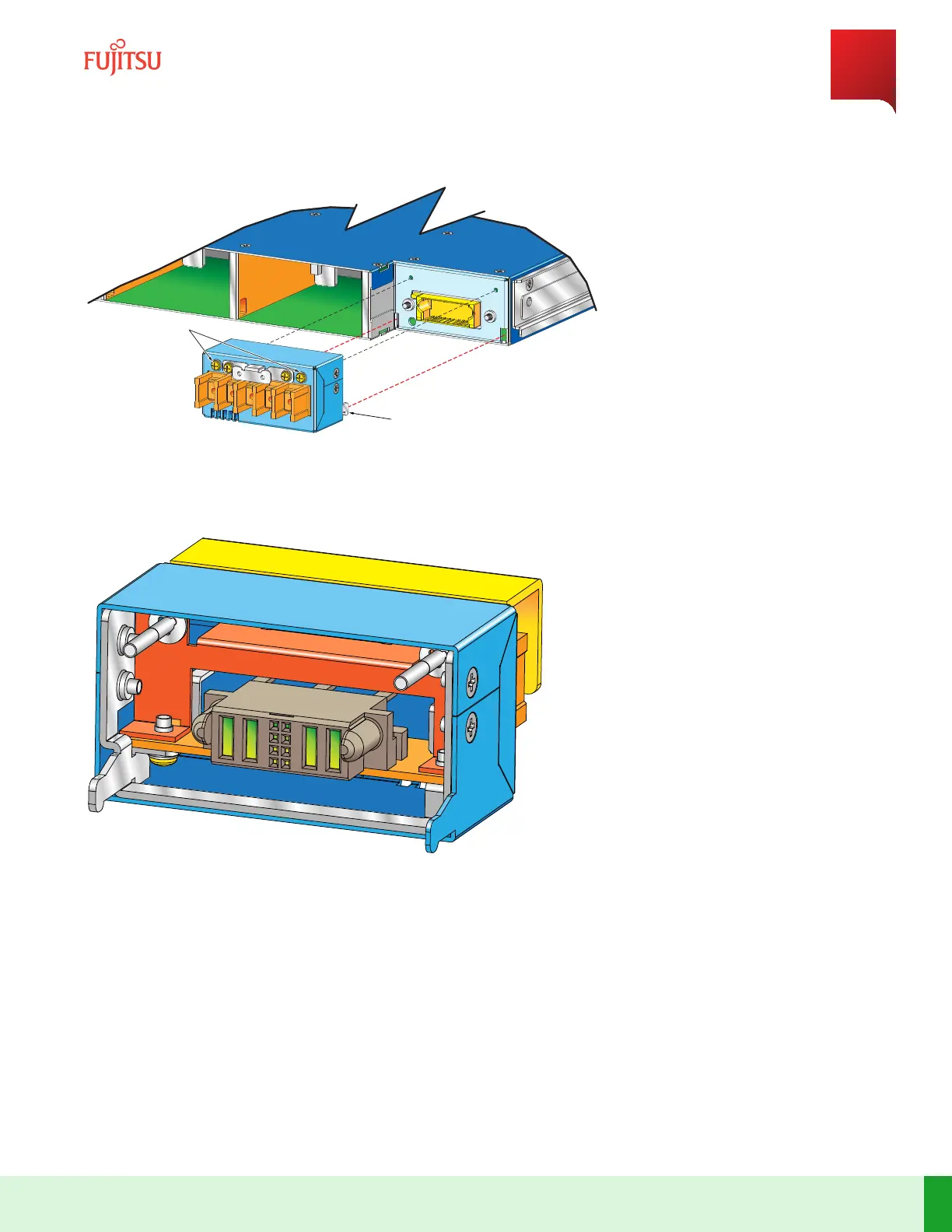

Figure 60
Power Terminal Adapter Descripon and Placement Locaon
FNC000503_Rev_01
Figure 61
Rear View of Power Terminal Adapter
Step 3
Aach the power terminal adapter onto the rear of the blade on the right-hand side by performing the following
substeps:
a) Insert the hooks on the power terminal adapter into the holes on the rear of the blade.
Equipment Installation
Install Power Terminal Adapter
