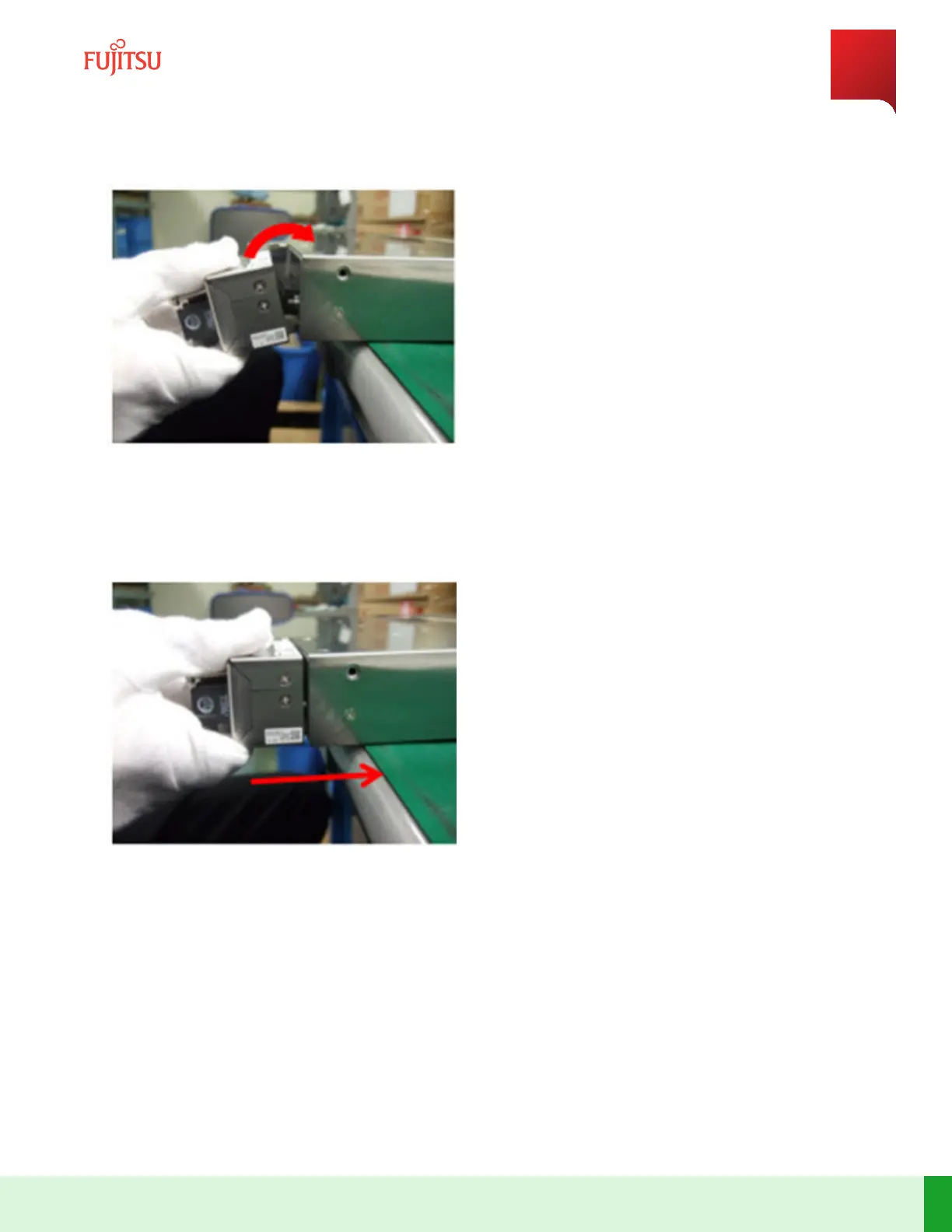

Figure 62
Hooking Power Terminal Adapter
b) Push the power terminal adapter unl it meets the rear of the blade.
Figure 63
Pushing Power Terminal Adapter
c) Press down slightly on the power terminal adapter to properly seat the adapter on the blade.
Equipment Installation
Install Power Terminal Adapter
133
Release 19.1.1 · Issue 1.1, May 2021
Fujitsu and Fujitsu Customer Use Only
