Ch.96
Ch.2
Ch.45
Ch.1
….
Channel Width = 50 GHz (all channels) 50 GHz
Frequency (THz)
196.10 196.05 196.00 191.35
4.8 THz
FNC00614_Rev_01

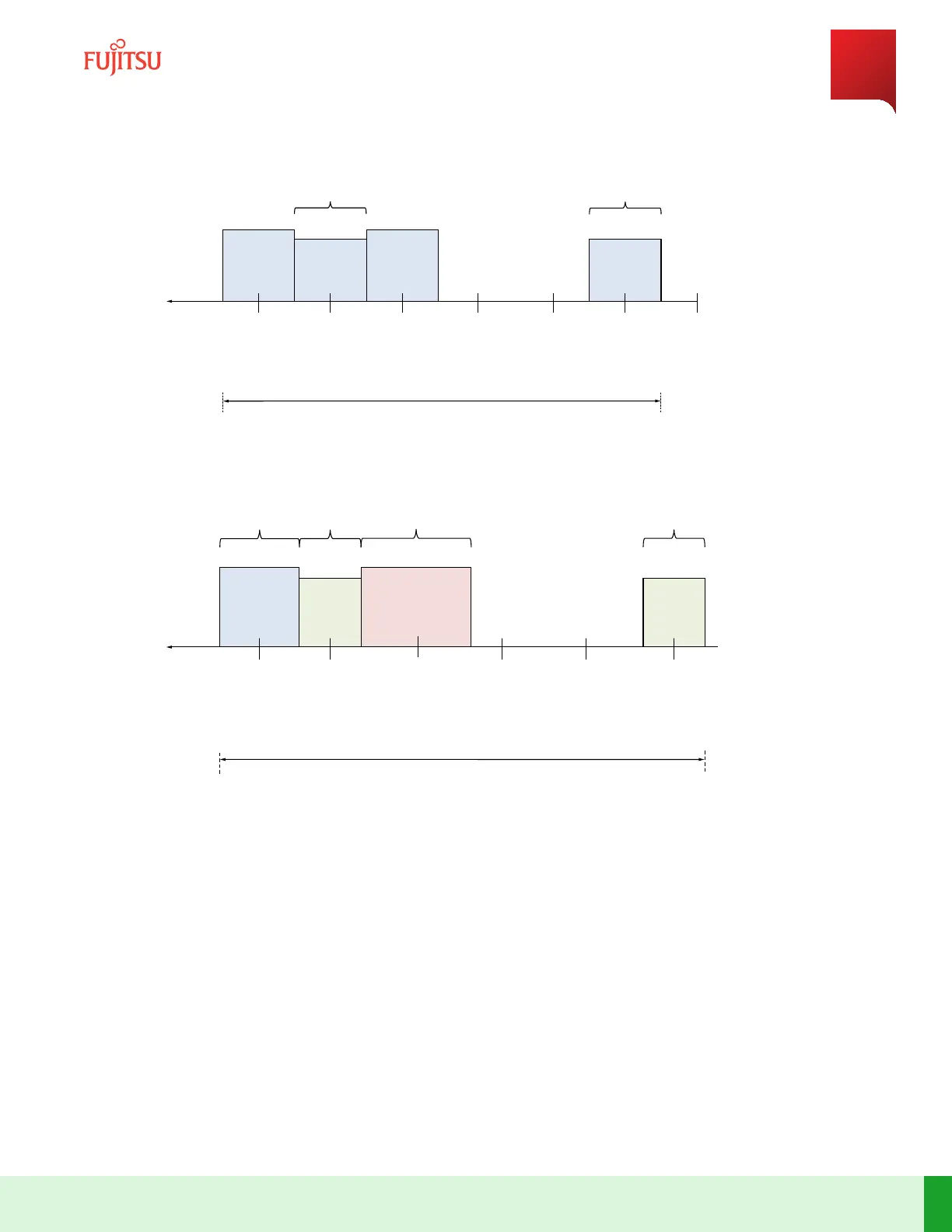

Figure 10
L100 Fixed Grid
….
Ch.Z
Ch.C
Ch.B
Ch.A
50 GHz
Frequency (THz)
196.10
196.05625
196.00
191.34375
37.5 GHz
37.5 GHz
75 GHz
4.8 THz
FNC00615_Rev_01
Figure 11
L100 Flexible Grid
User Channel
The user channel allows the user to set up an Ethernet communicaon connecon between two devices (either
ASCII terminals or computers) located at adjacent or nonadjacent L100 Lambda node. The user channel
communicaons are transmied through the L100 as part of the OSC payload. A user channel is funconally
equivalent to a hardwired, back-to-back Ethernet connecon between the devices.
Data packets are received through Ethernet management port (RJ-45 connector), wrapped in High-Level Data
Link Control (HDLC) frame, and transferred across the networks or NEs. No capability exists for the interface to
communicate with the user network from a logical perspecve; therefore, no MAC address is assigned to the
interface. It is merely a 10 Mb/s Ethernet data pipe between NEs.
