Fujitsu PRIMERGY CX2550 M4

CX2550/60/70 M4 Upgrade and Maintenance Manual 243
Processor (CPU)

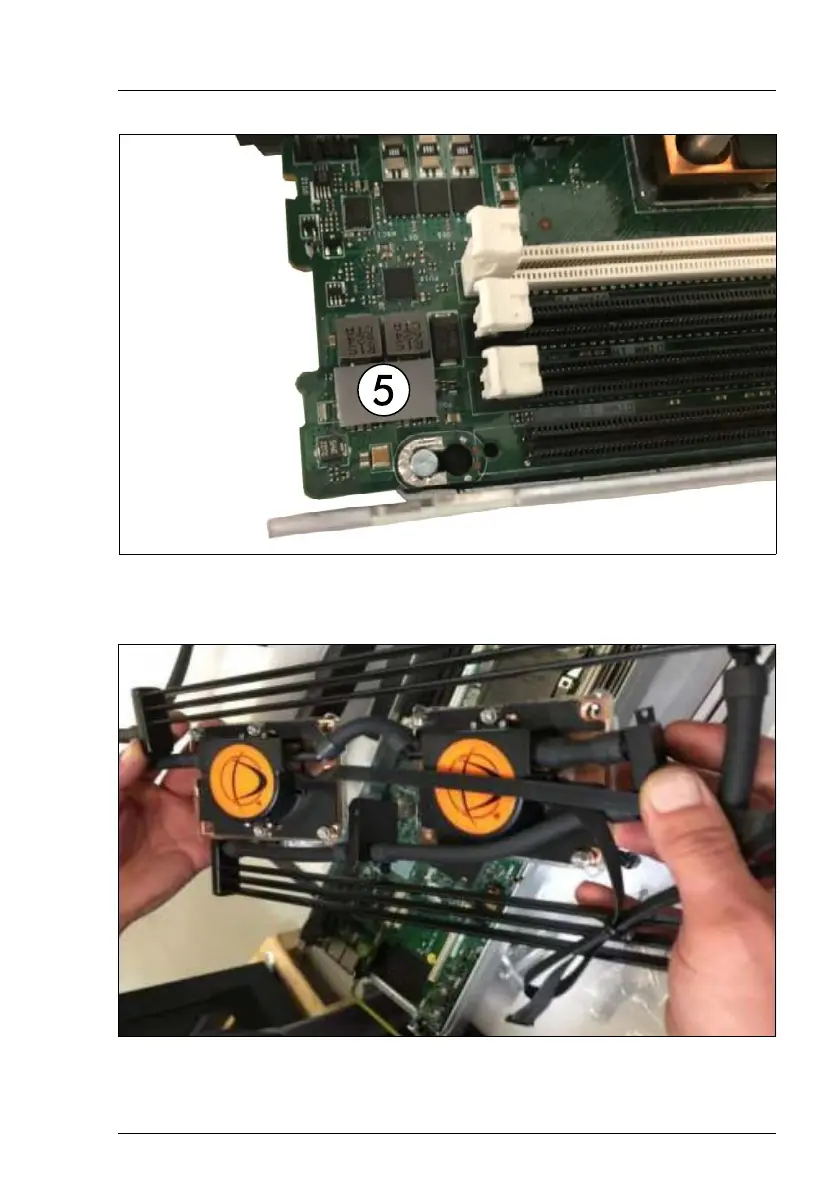

Figure 138: Placing thermal sheet 5
Ê Place the thermal sheet (13x7 mm) (5).
Figure 139: Aligning the LC kit (A)
Ê Hold the LC kit with both hands as shown.
