244 Upgrade and Maintenance Manual CX2550/60/70 M4
Ê Leave the CPU protection caps on.
Ê Align LC kit on the CPU socket and the memory sockets.

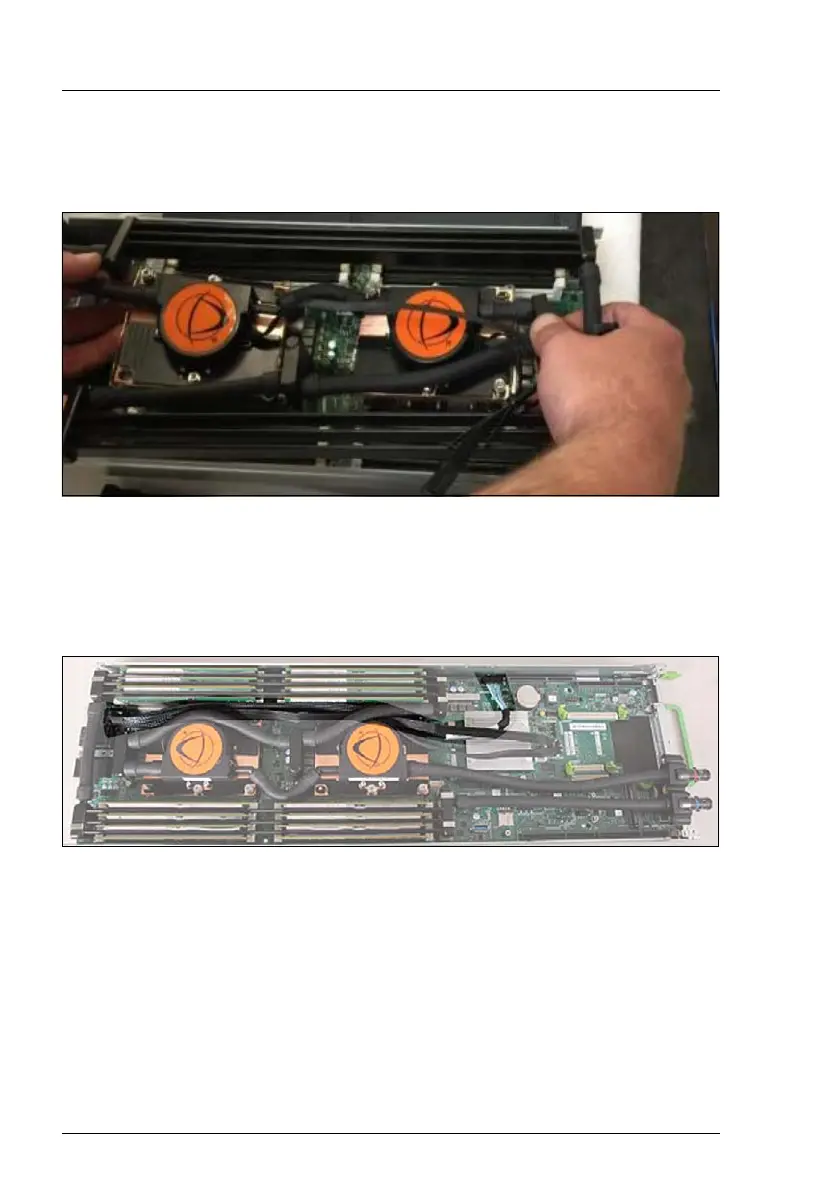

Figure 140: Aligning the LC kit (B)
Ê Carefully seat the heat sink onto the CPU socket.
I Take care of the pins. There is only one position which fits.
Figure 141: Routing the SATA cable
Ê Route the SATA cable into the space between the DIMM connector and
the CPU heat sink
as shown.
