CX2550/60/70 M4 Upgrade and Maintenance Manual 325

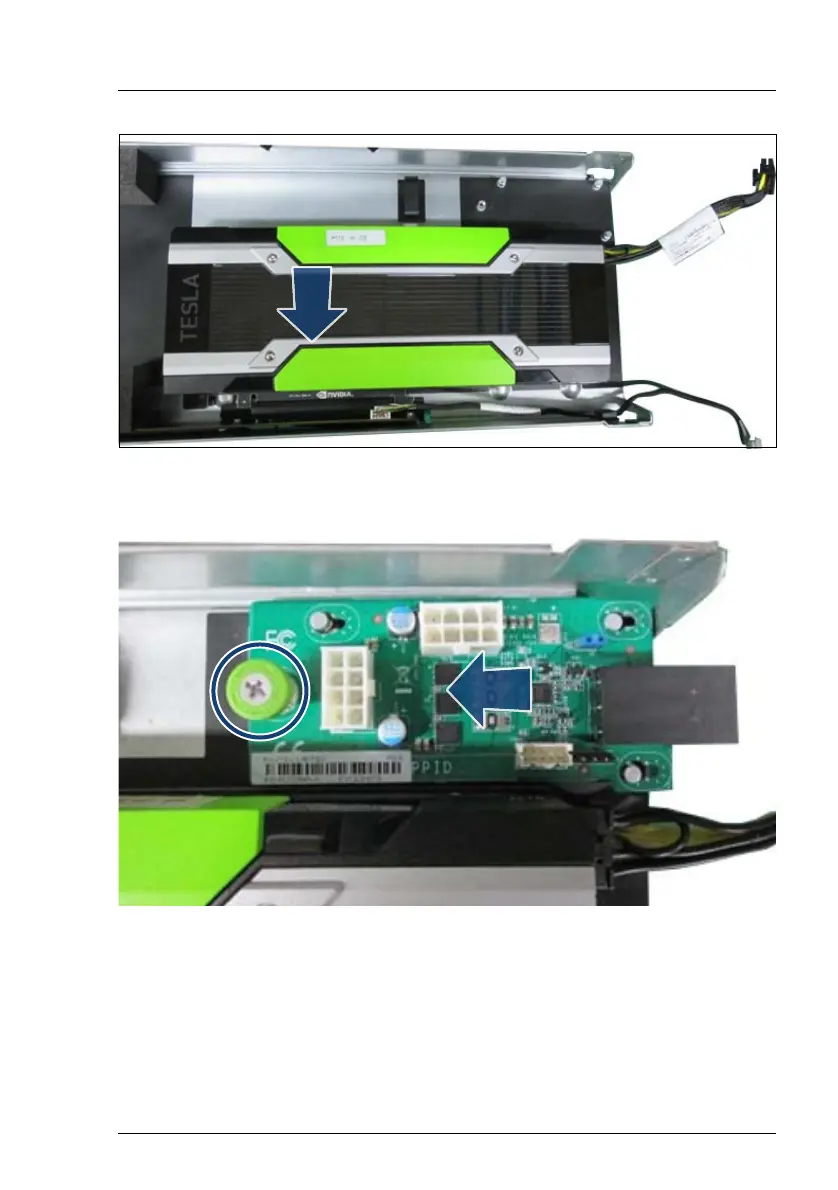

Figure 206: Connecting the GPGPU to PCIe riser (R)
Ê Connect the GPGPU to the riser (R).
Figure 207: Installing the PIB
Ê At a slight angle, lower the PIB into the chassis.
Ê Carefully shift the PIB in the direction of the arrow until the plug shell engage
with the cut-out in the chassis.
Ê
Fasten the PIB with the captive screw (see circle).
