326 Upgrade and Maintenance Manual CX2550/60/70 M4

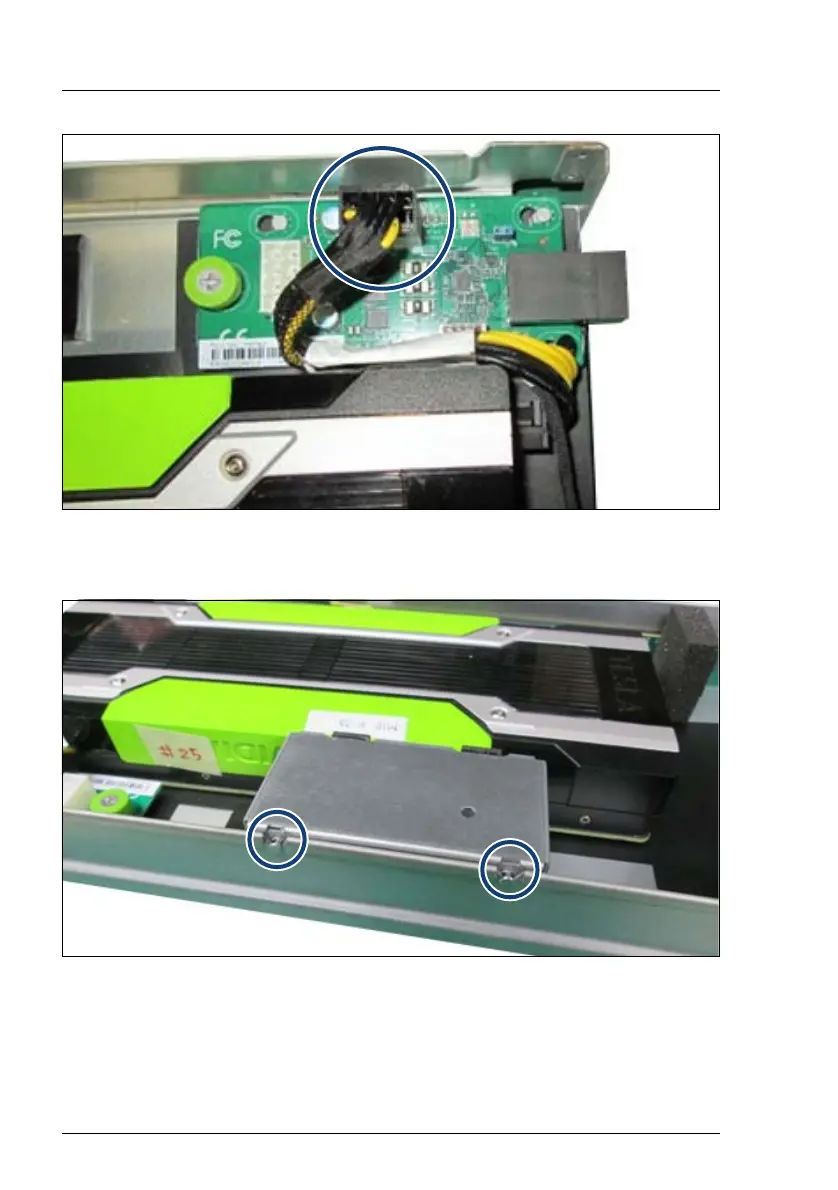

Figure 208: Connecting the GPGPU power cable
Ê Connect the GPGPU power cable, see circle.
Figure 209: Installing the spacer
Ê Insert the spacer as shown, so that the hooks engage in the recesses (see
circles).
