422 Upgrade and Maintenance Manual CX2550/60/70 M4
Connecting the SATA cable

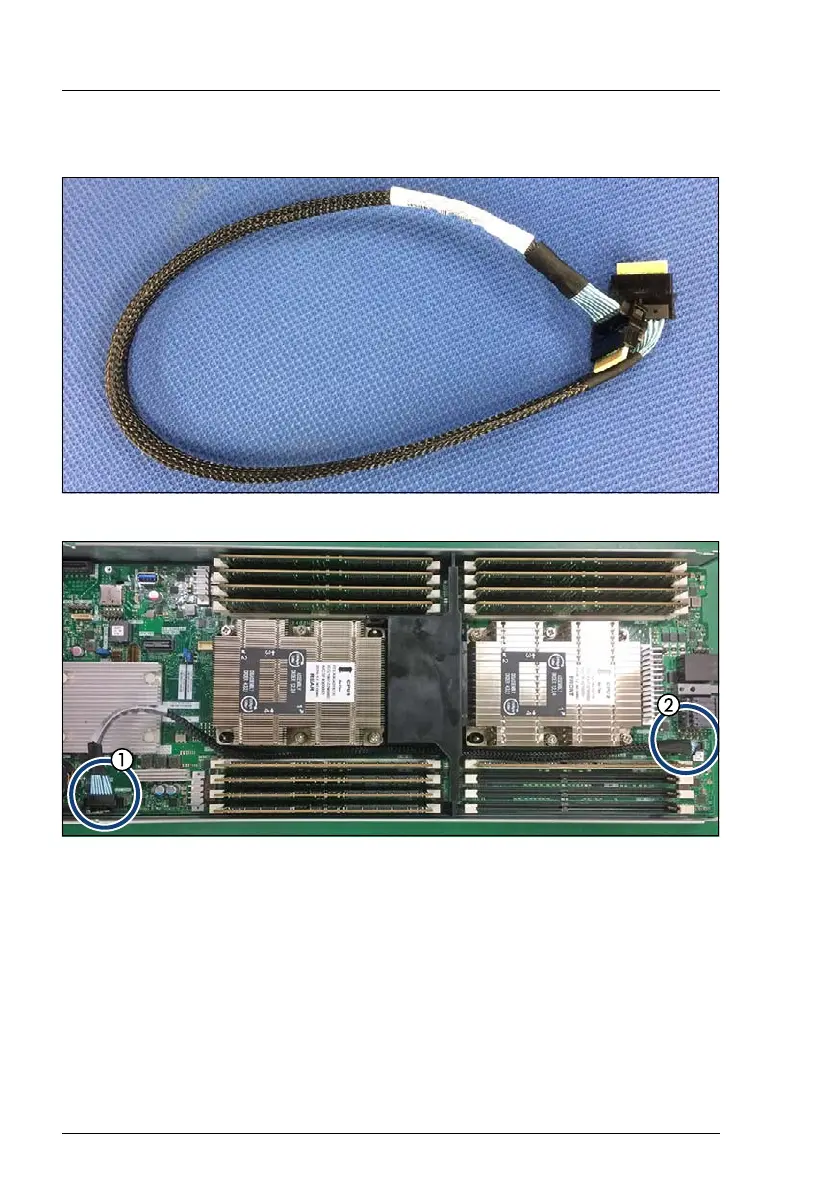

Figure 309: SATA cable
Figure 310: Connecting the SATA cable
I The air duct must be removed when the SATA cable is routed.
Ê Plug the angled end of the SATA cable on the SAS COM1 connector (1) and
the other end to the SAS COM2 connector on the system board (2).
Ê Insert the cable into the gap between the heat sink and DIMM module.
