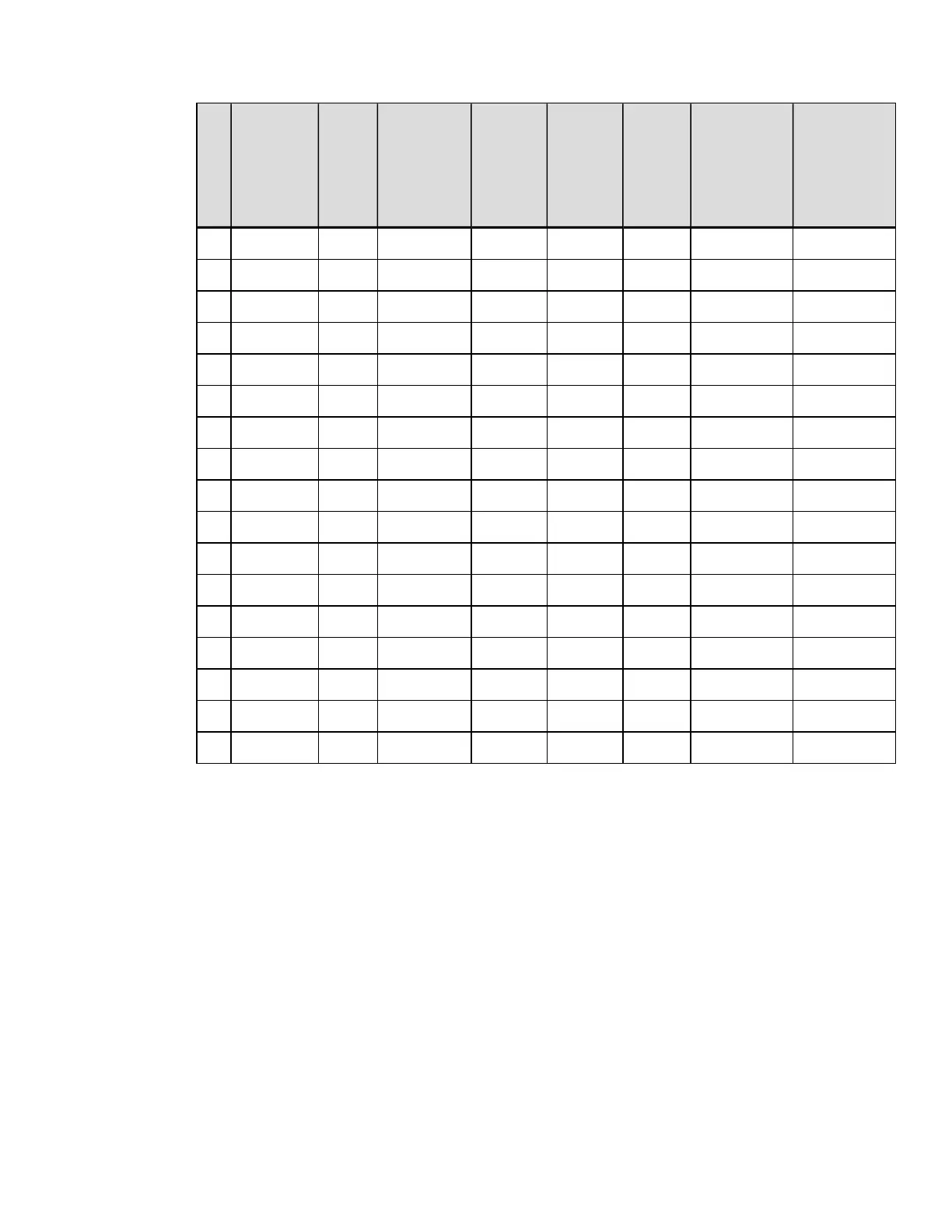

hi Columns Rows
Max
Errors
Corrected
[1]
Symbol
Width
[2]
Symbol
Height
[3]
Max
Binary
Data
Bytes
[3]
Max Alpha
Characters
[5]
Max
Numeric
Characters
[5]
34 3 15 18 84 32 27 46 67
35 3 20 23 84 42 39 66 96
36 3 26 29 84 54 54 90 132
37 3 32 35 84 66 68 114 167
38 3 38 41 84 48 82 138 202
39 3 44 47 84 90 97 162 237
40 4 4 5 101 10 8 14 20
41 4 6 8 101 14 13 22 32
42 4 8 11 101 18 20 34 449
43 4 10 13 101 22 27 46 67
44 4 12 15 101 26 34 58 85
45 4 15 18 101 32 45 76 111
46 4 20 23 101 42 63 106 155
47 4 26 29 101 54 85 142 208
48 4 32 35 101 66 106 178 261
49 4 38 41 101 48 128 214 313
4A 4 44 47 101 90 150 250 366
Note: In the table above, row/column/error correction selection index (hi) values
increasingly large do not necessarily result in the ability to encode more data.
[1] Can be any combination of 1 erasures + 2 substitutions (e.g. 13 maximum number
of errors corrected might include 7 erasures and 3 substitutions).
[2] Includes 1 module width of quiet zone on either side.
[3] Assumes the module height is 2 module width, and includes one module width
quiet zones on top and bottom.
[4] Assumes Binary Compaction.
[5] Assumes Text Compaction.
DPL Command Reference
247
