Keithley 4200-SCS User Manual

2-46 Return to Section Topics 4200-900-01 Rev. K / February 2017
Section 2: Model 4200-SCS Software Environment Model 4200-SCS User’s Manual

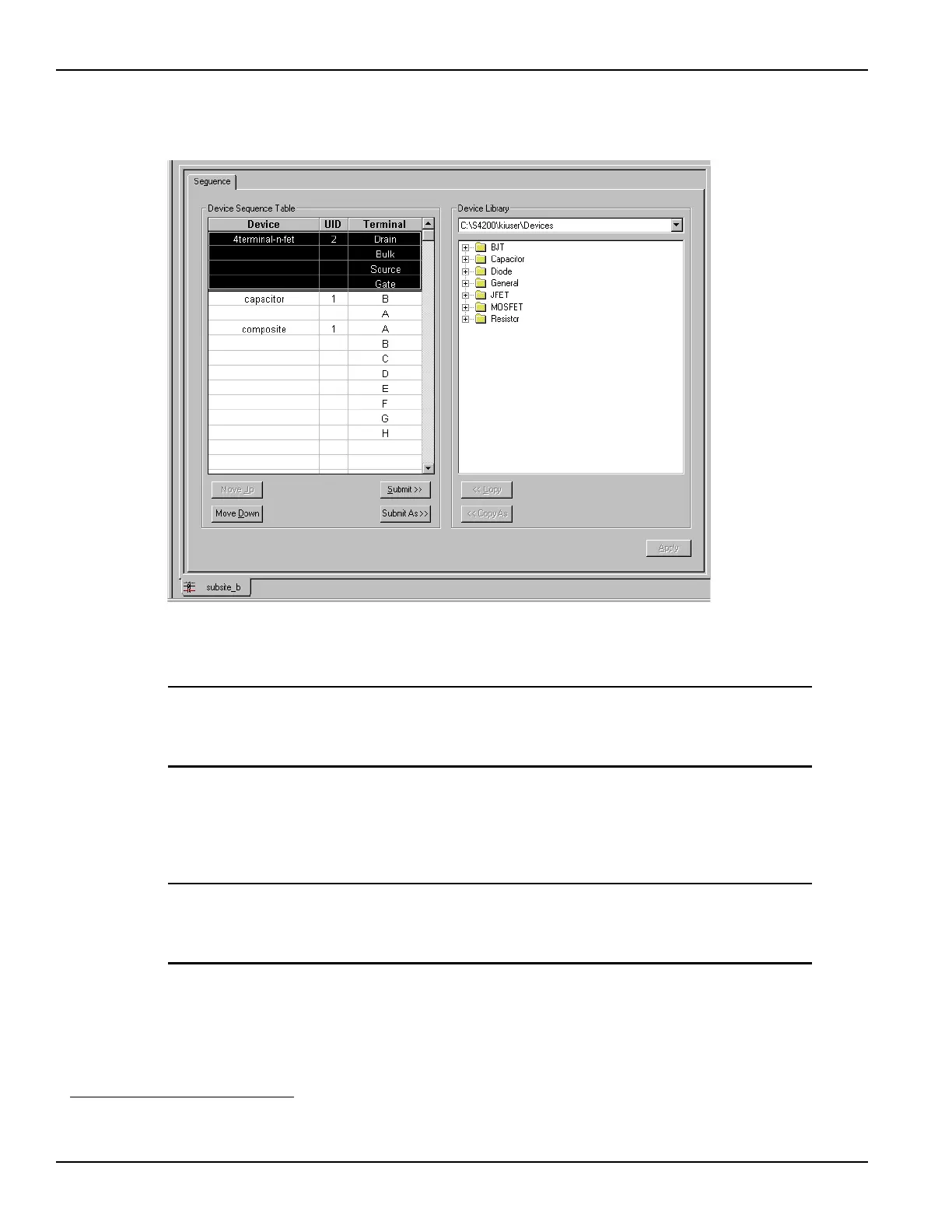

Figure 2-35
Subsite plan window containing the device plan to be submitted
3. If you wish to submit the device plan to a Device Library directory other than the default
Device Library directory,
*5
select the alternate Device Library directory in the Device Library
box of the subsite plan window.
NOTE Only the default Device Library directory is available in the Device Library box, unless
other Device Library directories were previously added through the directories tab of
the KITE Options window. Access the KITE Options window by selecting Options on
the Tools menu. through the Tools > Options menu.
4. In the Device Library directory tree, select a destination folder that is appropriate for the
devices.
5. In the Device Sequence Table of the subsite plan window, select the devices to be
submitted.
NOTE You may select and submit multiple device plans at the same time. To select a
sequential group of device plans, hold down the Shift key while clicking the first and
last device plan in the sequence. To select a group of individual device plans, hold
down the Ctrl key while clicking the individual device plans.
Figure 2-36 shows the composite device selected in the Device Sequence Table, and the
General destination folder selected in the Device Library.
5. For example, the C:\S4200\kiuser\Devices factory-default directory or another directory that was specified as
the default using KCON, such as C:\S4200\YourName\Devices.
