4200-900-01 Rev. K / February 2017 Return to Section Topics 2-47
Model 4200-SCS User’s Manual Section 2: Model 4200-SCS Software Environment

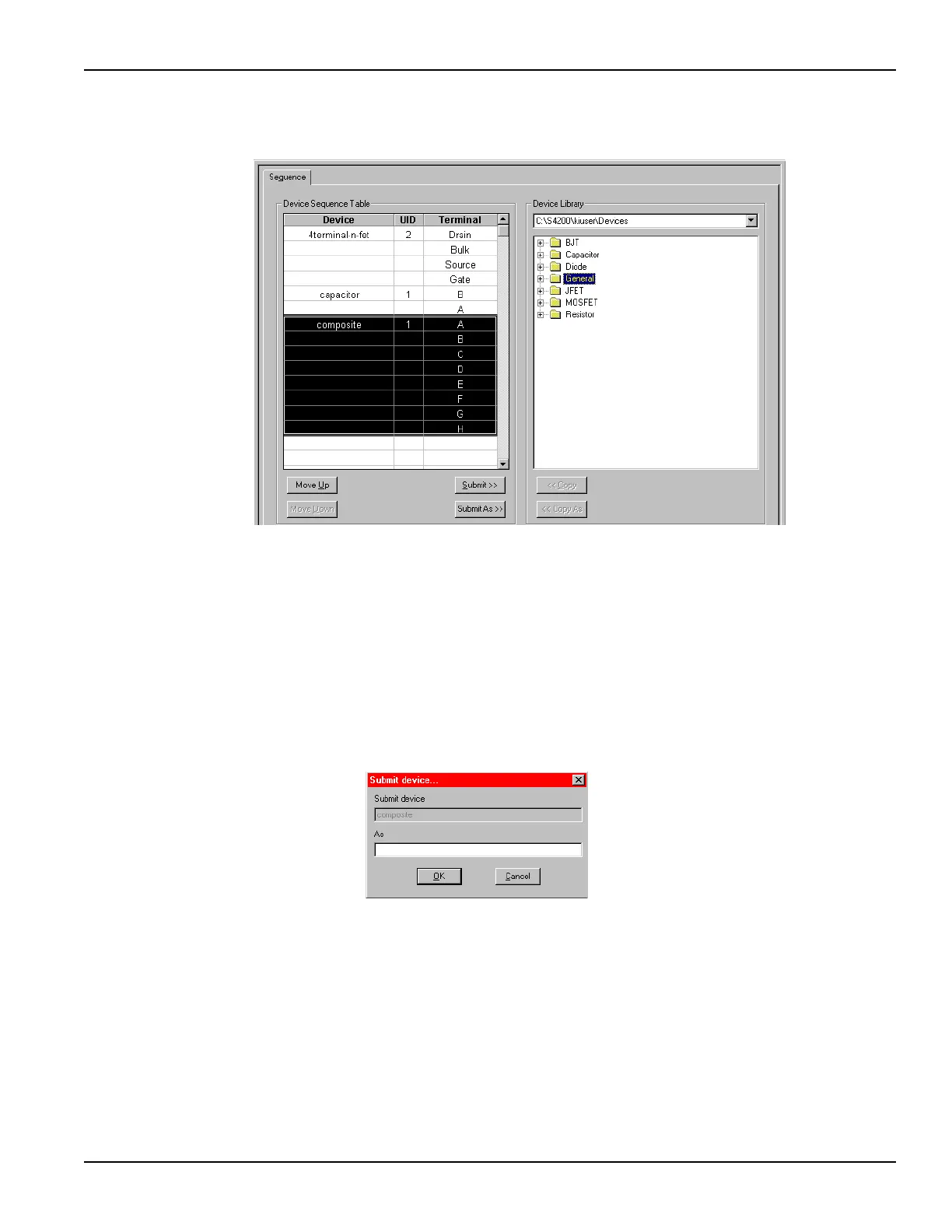

Figure 2-36
Selected device and destination folder
6. Do one of the following:
• If you wish to submit the selected device or devices with the original names, click the
Submit >> button in the subsite plan window. The selected device or devices is
submitted to the chosen folder.
• Stop here. You have finished the device submission procedure.
• If you wish to submit the selected device or devices under a different name or names,
click the Submit As >> button in the subsite plan window. The Submit device dialog box
opens, displaying the original name of the device (or, if you selected multiple devices,
displaying the original name of one of the devices). See Figure 2-37.
Figure 2-37
Submit device dialog box
7. In the As edit box of the Submit device dialog box, type a name for the device.
8. Click OK. One of the following occurs:
• If you selected only one device in the Device Sequence Table, the selected device is
submitted to the chosen folder under the new name. Stop here; you have finished the
device submission procedure.
• If you selected multiple devices in the Device Sequence Table, the following occurs:
a. The device that you renamed in Step 7 is submitted to the chosen folder under the
new name.
b. Then, another Submit device dialog box opens for another selected device.
9. Repeat Steps 7 and 8 until all of the selected devices have been submitted (until no more
Submit device dialog boxes open).
