3-36 Return to Section Topics 4200-900-01 Rev. K / February 2017
Section 3: Common Device Characterization Tests Model 4200-SCS User’s Manual
• For RF probes, connect the SMA cables from the RBTs to the RF probe manipulators, as
shown in Figure 3-33.
• To use the supplied 8101-PIV test fixture (see Figure 3-28), connect the SMA cables from
the RBTs to the 8101-PIV Test fixture as shown in Figure 3-34. Install DUT as shown in
Figure 3-35.
3. Finish the setup by verifying connections and running a scope-shot test from the Pulse IV-
Complete project.

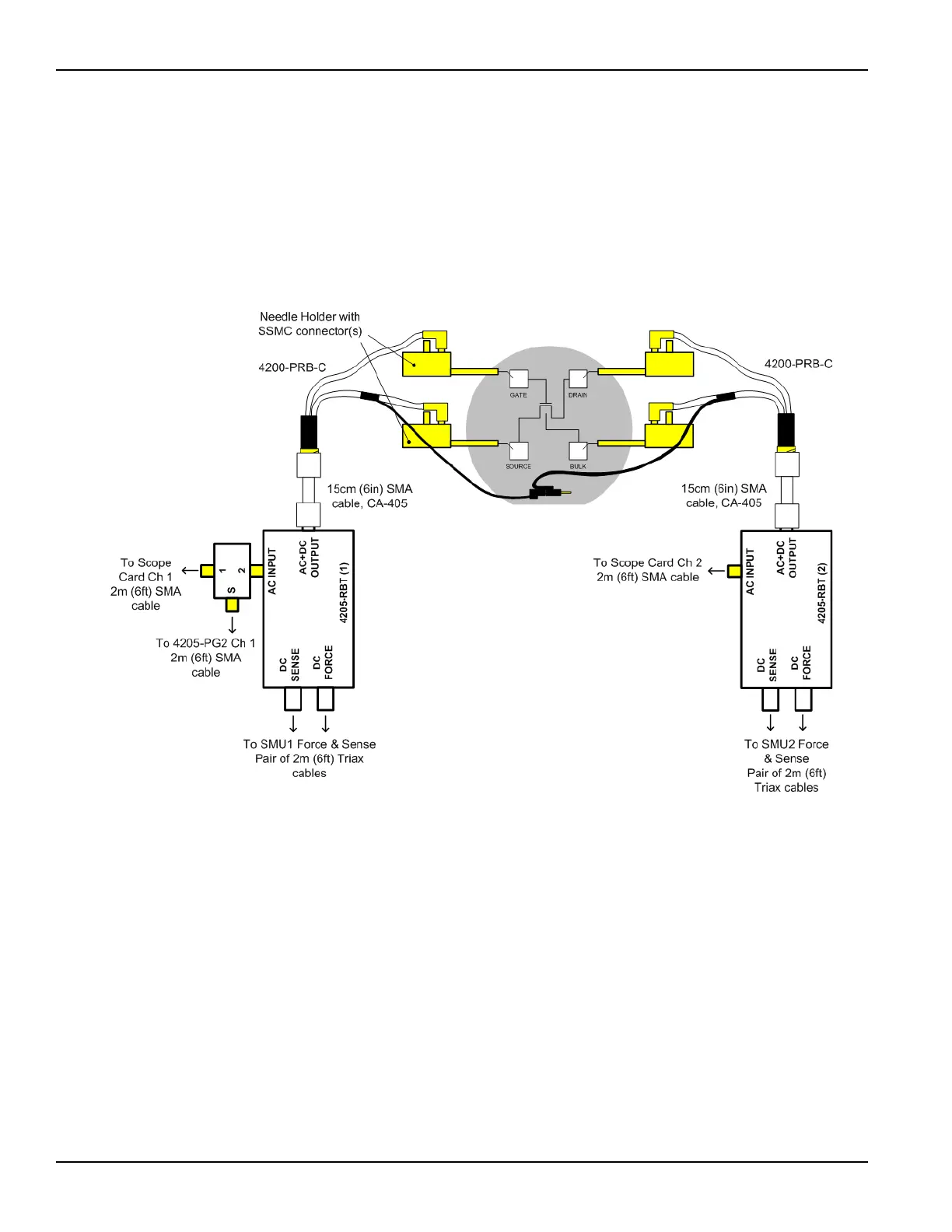

Figure 3-32
Pulse IV connections using PRB-C adapter cables
