3-110 Return to Section Topics 4200-900-01 Rev. K / February 2017
Section 3: Common Device Characterization Tests Model 4200-SCS User’s Manual
– Hold down the Shift key while using the cursor arrow keys to highlight all the cells in
the Segment ARB
®
waveform.
– Press Ctrl-c to copy.
c. Place the entry cell into an undefined channel (Row 1, Start (V) column) and press
Ctrl-v to copy.
– Use the cursor arrow keys to move around and edit the various cells as necessary.
4. The trigger = 1 values in the 1
st
and 5
th
segments. These are the first segments in the
program and erase pulses in a typical two pulse program/erase waveform.
• In the case of multi-card waveform output, the trigger is not used as a typical trigger, but
as a synchronizing signal between pulse cards (see the Reference manual, Multi-channel
synchronization with the Segment ARB Mode, page 11-36).
NOTE It is recommended to use trigger = 1 for the first segment of each pulse in a
waveform.
5. For each unique waveform, export each to a file following the steps given in the Exporting
Segment ARB waveform files, page 5-8.
6. The exported Segment ARB files cannot be imported back into Kpulse and are saved in the
path C:\S4200\kiuser\KPulse\Sarbfiles by default.
7. These waveforms will be chosen in the Subsite Setup Device Stress Properties window
used in the Flash Endurance and FlashDisturb projects. For example, the waveforms are
chosen by clicking the browse … button on the Device Stress Properties in Figure 3-114.
The use of these projects is described below.

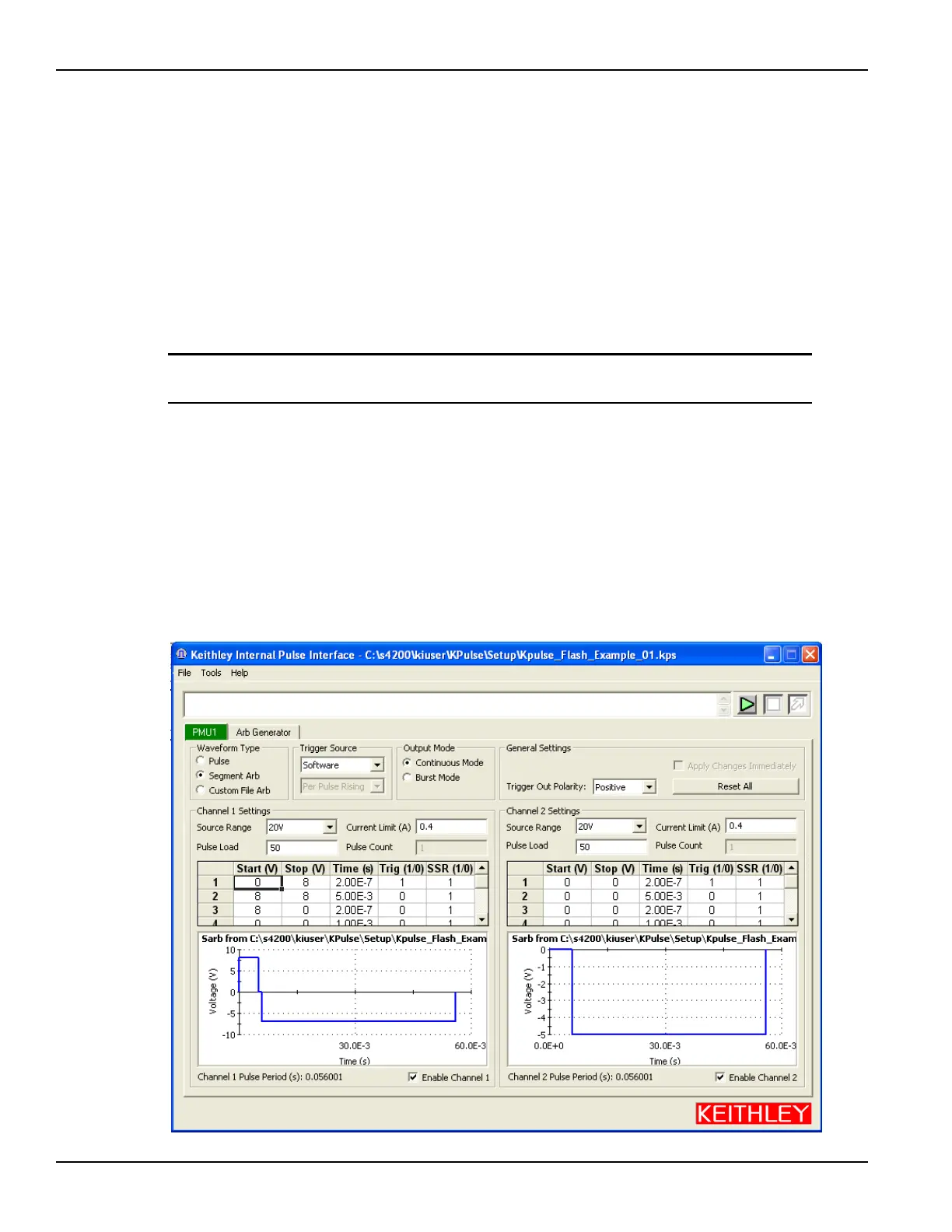

Figure 3-92
Kpulse Segment ARB pulse card settings
