Model 4200-SCS User Manual Section 4: How to Control Other Instruments with the Model 4200-SCS

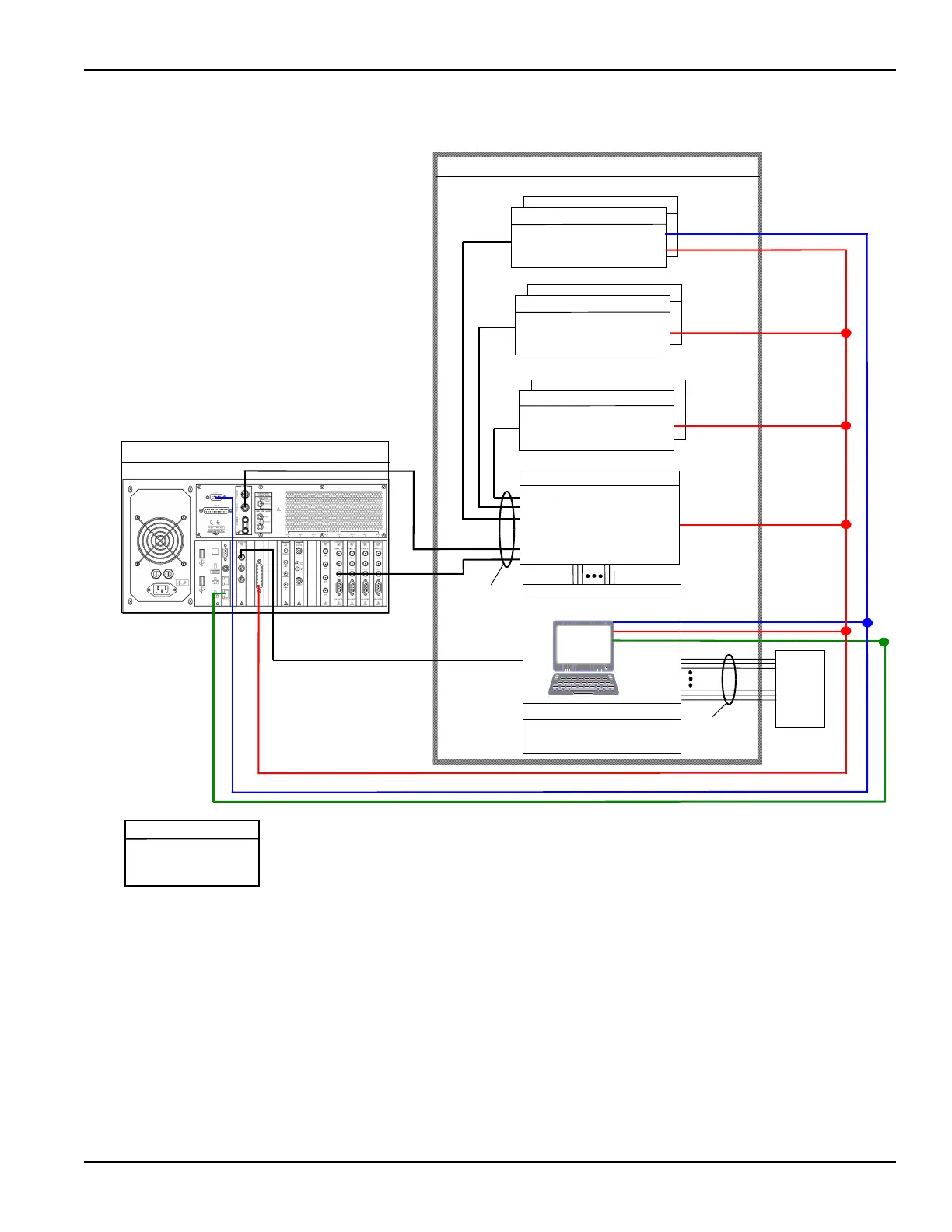

Figure 4-1
System configuration with external instruments
User modules are used to access these communication interfaces and control external equipment.
User modules are stored in user libraries, which are created and maintained with the Keithley User
Library Tool (KULT). For information about creating and maintaining user libraries refer to the
Reference Manual, Advanced KULT features, page 8-39.
To execute a KULT user module in Keithley Interactive Test Environment (KITE) create a KITE
user test module (UTM) and connect it to the user module. Once this user module is connected to
the UTM, the following occurs each time KITE executes the UTM:
• KITE dynamically loads the user module and the appropriate user library.
• KITE passes the user-module parameters stored in the UTM to the user module.
• Data generated by the user module is returned to the UTM for interactive analysis.
External instruments
GPI1-8
General-purpose
test instruments
PGU1-16
Pulse generators
CMTR1-8
Capacitance meters
MTRX1
Switch matrix
PRBR1
Probe station
Probe
station
controller
TF1
Test fixture
IEEE-488
or
RS-232
IEEE-488
IEEE-488
IEEE-488
Ethernet
or
IEEE-488
or
RS-232
Internal instruments
Model 4200-SCS
Device
under
test
(DUT)
Test system
pins
Instrument
terminal
connections
Safety Interlock
RED = GPIB/IEEE-488
BLUE = RS-232
Green = Ethernet
Legend
