Keithley 4200-SCS User Manual

4-4 Return to Section Topics 4200-900-01 Rev. K / February 2017
Section 4: How to Control Other Instruments with the Model 4200-SCS Model 4200-SCS User Manual

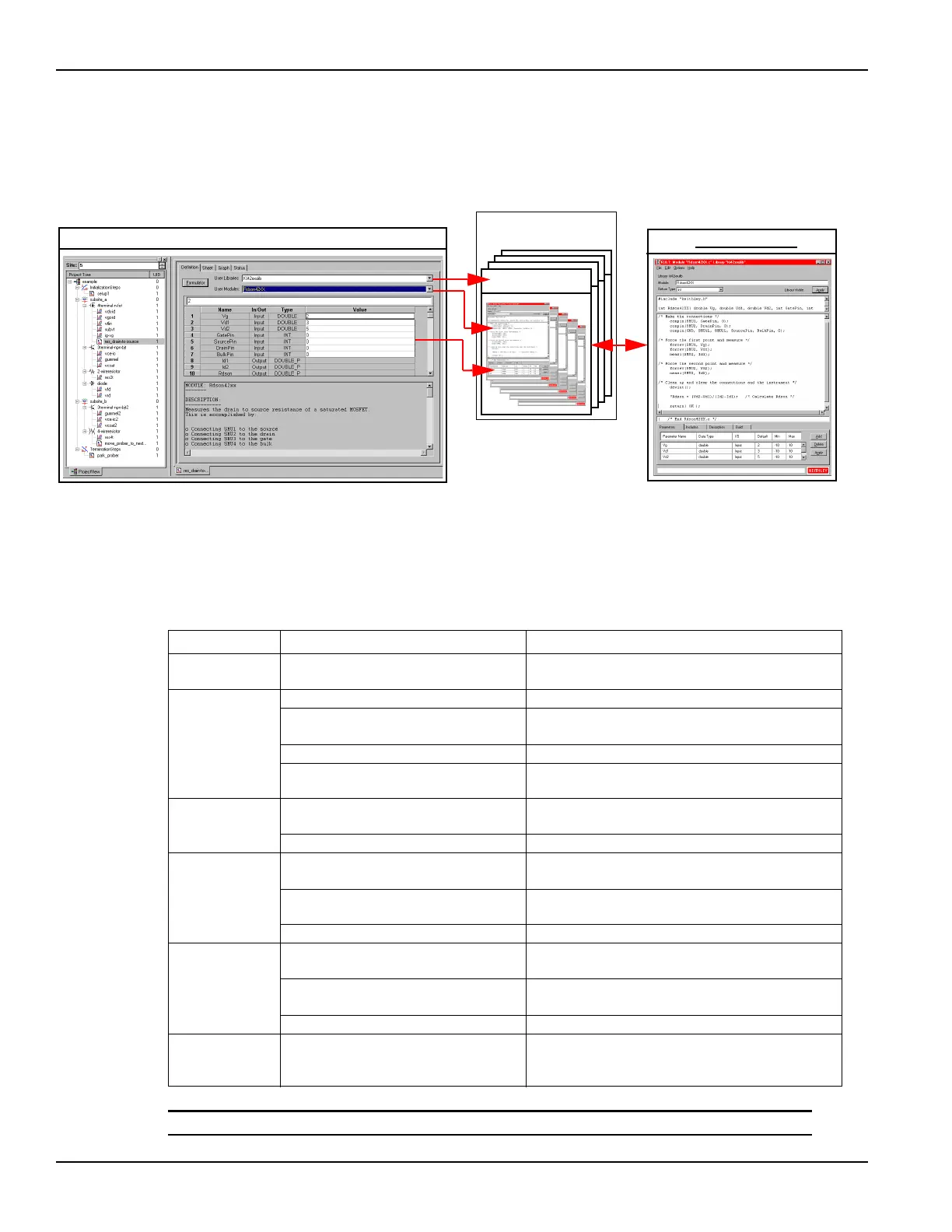

Figure 4-2 illustrates the relationships between user libraries, user modules, UTMs, KITE, and
KULT.
Figure 4-2
Relationships between KULT and KITE - user libraries, user modules, and UTMs
Keithley Instruments provides a number of standard user libraries to control external equipment
used in semiconductor characterization applications. Standard libraries of user modules for the
following equipment are provided in Tab le 4- 1:
NOTE Contact Keithley for the most current list of supported external equipment.
Tab l e 4- 1
Supported external equipment table
Category Instrument Keithley user library / additional information
Switch matrix Keithley Model 707/707A Switching
Matrix
matrixulib / Model 4200-SCS Reference Manual
Capacitance
meter
Keithley Model 590 CV Analyzer ki590ulib / Model 4200-SCS Reference Manual
ki595ulib Model 595 Quasistatic CV Meter Instruction
Manual (document number 595-901-01)
ki82ulib Model 4200-SCS Reference manual
Hewlett Packard Model 4284 LCR
Meter
hp4284ulib / Model 4200-SCS Reference Manual
Pulse generator Hewlett Packard Model 8110A Pulse
Generator
hp8110ulib / Model 4200-SCS Reference Manual
Keithley Model 340X Pulse Generator KI340xulib / Model 4200-SCS Reference Manual
Probe station Karl Suss Model PA-200
Semiautomatic probe station
prbgen / Model 4200-SCS Reference Manual
Micromanipulator Model 8860
Semiautomatic probe station
prbgen / Model 4200-SCS Reference Manual
Manual or Fake probe station prbgen / Model 4200-SCS Reference Manual
Test fixture Keithley Model 8006 Component Test
Fixture
(not applicable)
Keithley Model 8007 Semiconductor
Test F ix t u r e
(not applicable)
Generic test fixture (not applicable)
General-
purpose test
instrument
(Any IEEE-488 or RS-232 or
controlled instrument or Ethernet
equipment)
(created by user)
KULT window
User library
KITE window displaying UTM definition
User library
directory (usrlib)
U
s
e
r
M
o
d
u
l
e
U
s
e
r
M
o
d
u
l
e
