Keithley 4200-SCS User Manual

4-6 Return to Section Topics 4200-900-01 Rev. K / February 2017
Section 4: How to Control Other Instruments with the Model 4200-SCS Model 4200-SCS User Manual

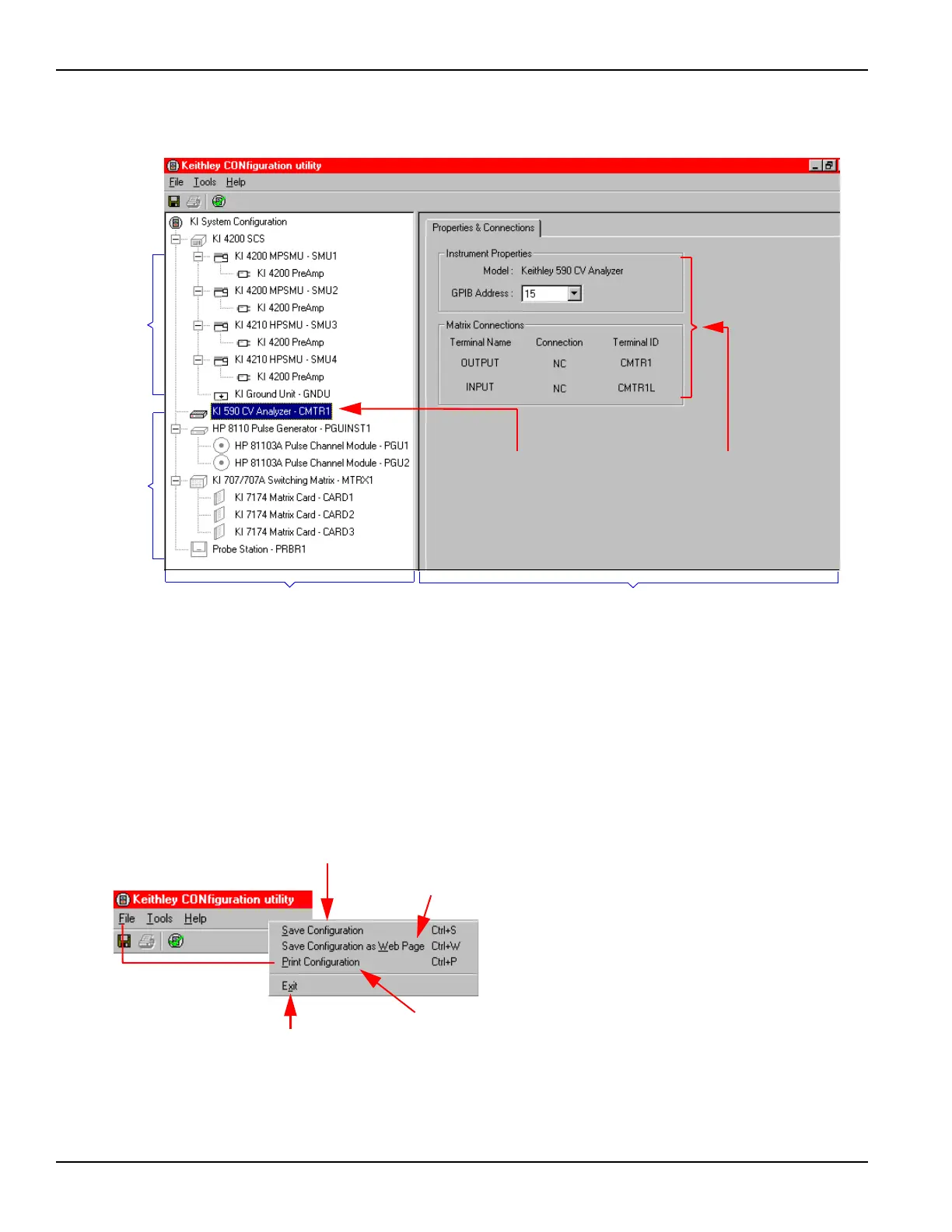

Figure 4-3
Keithley CONfiguration Utility Overview
Figures 4-4, 4-5, and 4-6 describe the menu options of the KCON utility graphical user interface
(GUI).
Figure 4-4
KCON utility file menu
Workspace:
Displays configuration properties for the instrument that is selected in the
configuration navigator, and — for external instruments — allows changing
of configured properties, such as the GPIB address shown above.
Configuration navigator:
Displays all instruments and equipment
that are included in the Model 4200-SCS
system configuration.
Internal
instruments:
Factory-
installed SMUs,
preamps, 4200-
PG2, 4200-
SCP2 and
ground unit.
External
Instruments:
User-installed
switch matrix,
capacitance
meters, pulse
generators,
probe station,
test fixture,
and general-
purpose test
instruments.
Selected instrument for which this configuration information is displayed
Saves the revised system configuration,
making it the working configuration for KITE,
KULT, or KXCI. If you do not save the changes,
the configuration reverts to the last-saved
configuration.
Saves the system configuration as an HTML file that can be
viewed in a web browser. If you first select KI System Con-
figuration in the configuration navigator, this menu item
generates a web page that displays general Model
4200-SCS system information.
Closes the KCON program. If you
revised but did not save the
configuration, KCON reminds you.
Prints the general system configuration information
— the information that displays in the KCON
workspace when KI System Configuration is
selected in the configuration navigator.
