Model 4200-SCS User’s Manual Section 5: How to Generate Basic Pulses

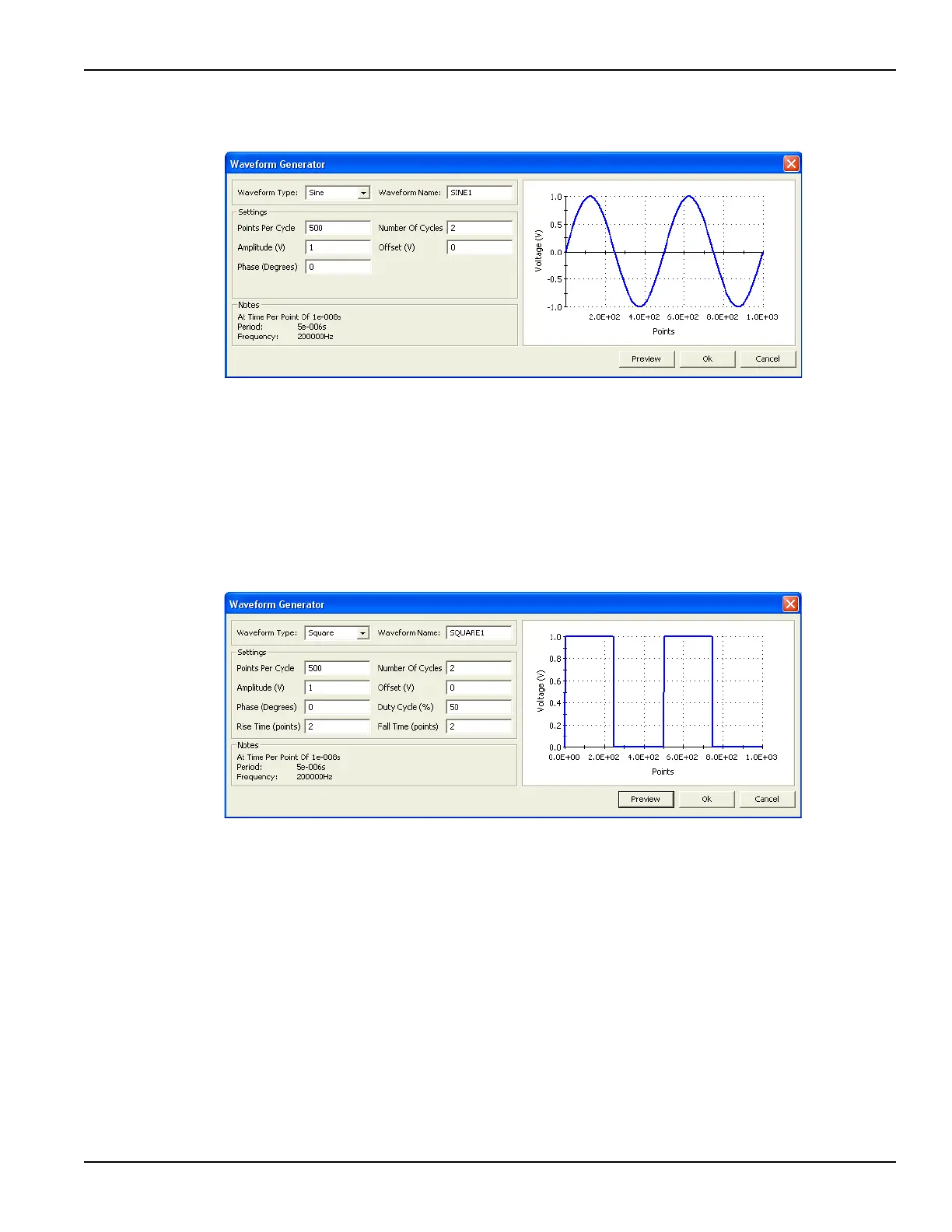

Figure 5-10
Sine waveform (default settings)
Square waveform
An example of a square waveform, using the default settings, is shown in Figure 5-11. The
waveform for this example is named SQUARE1, but can be any name that is not already used in
the Scratch Pad.
After changing one or more settings, click Preview to display the waveform. Clicking Ok places
the waveform in the Scratch Pad.
Figure 5-11
Square waveform (default settings)
Triangle waveform
An example of a triangle waveform, using the default settings, is shown in Figure 5-12. The
waveform for this example is named TRIANGLE1, but can be any name that is not already used in
the Scratch Pad.
After changing one or more settings, click Preview to display the waveform. Clicking Ok places
the waveform in the Scratch Pad.
