Keithley 4200-SCS User Manual

5-16 Return to Section Topics 4200-900-01 Rev. K / February 2017
Section 5: How to Generate Basic Pulses Model 4200-SCS User’s Manual
After changing one or more settings, click Preview to display the waveform. Clicking Ok places
the waveform in the Scratch Pad.

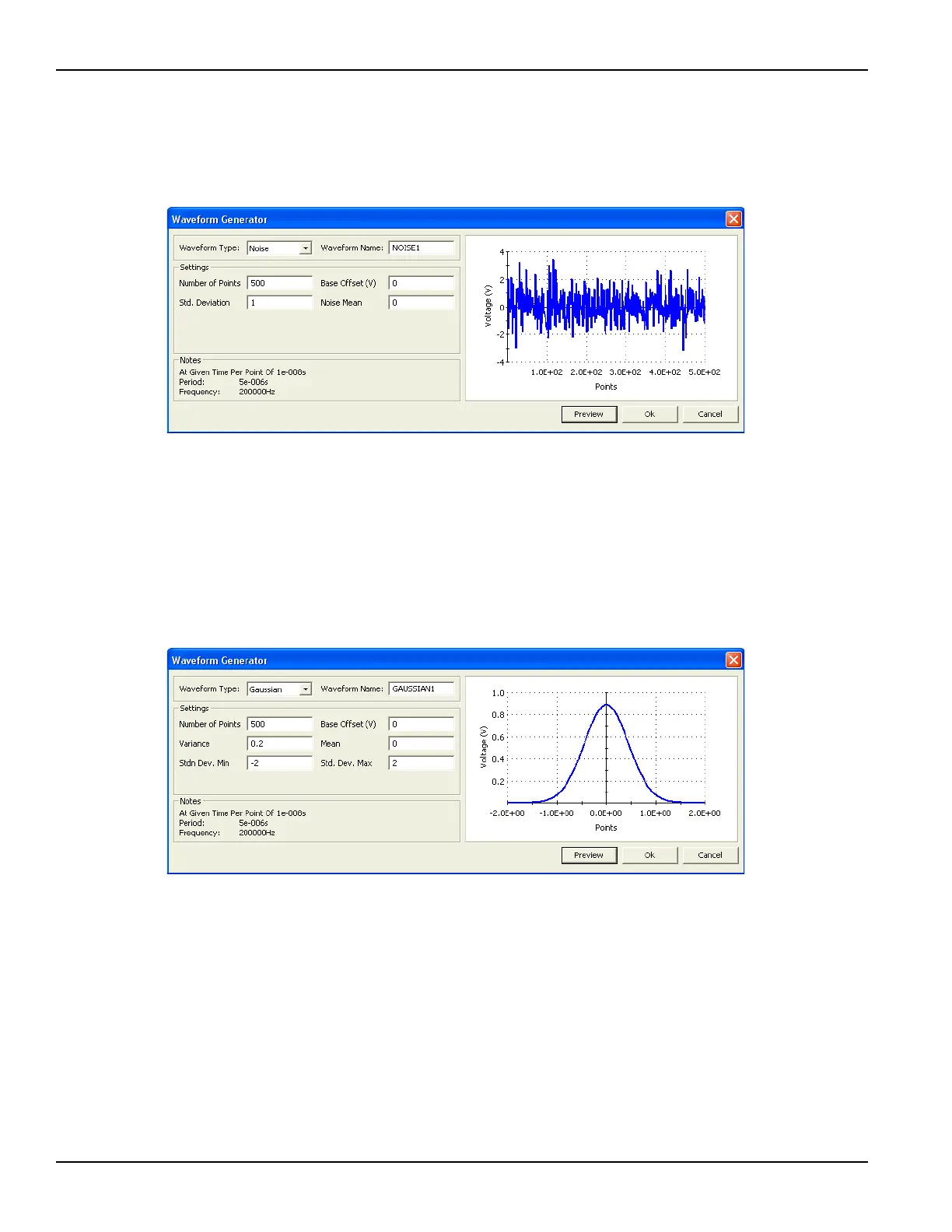

Figure 5-16
Noise waveform (default settings)
Gaussian waveform
An example of a Gaussian waveform, using the default settings, is shown in Figure 5-17. The
waveform for this example is named GAUSSIAN1, but can be any name that is not already used in
the Scratch Pad.
After changing one or more settings, click Preview to display the waveform. Clicking Ok places
the waveform in the Scratch Pad.
Figure 5-17
Gaussian waveform (default settings)
Ramp waveform
An example of a ramp waveform, using the default settings, is shown in Figure 5-18. The
waveform for this example is named RAMP1, but can be any name that is not already used in the
Scratch Pad.
After changing one or more settings, click Preview to display the waveform. Clicking Ok places
the waveform in the Scratch Pad.
