Model 4200-SCS User’s Manual Section 5: How to Generate Basic Pulses

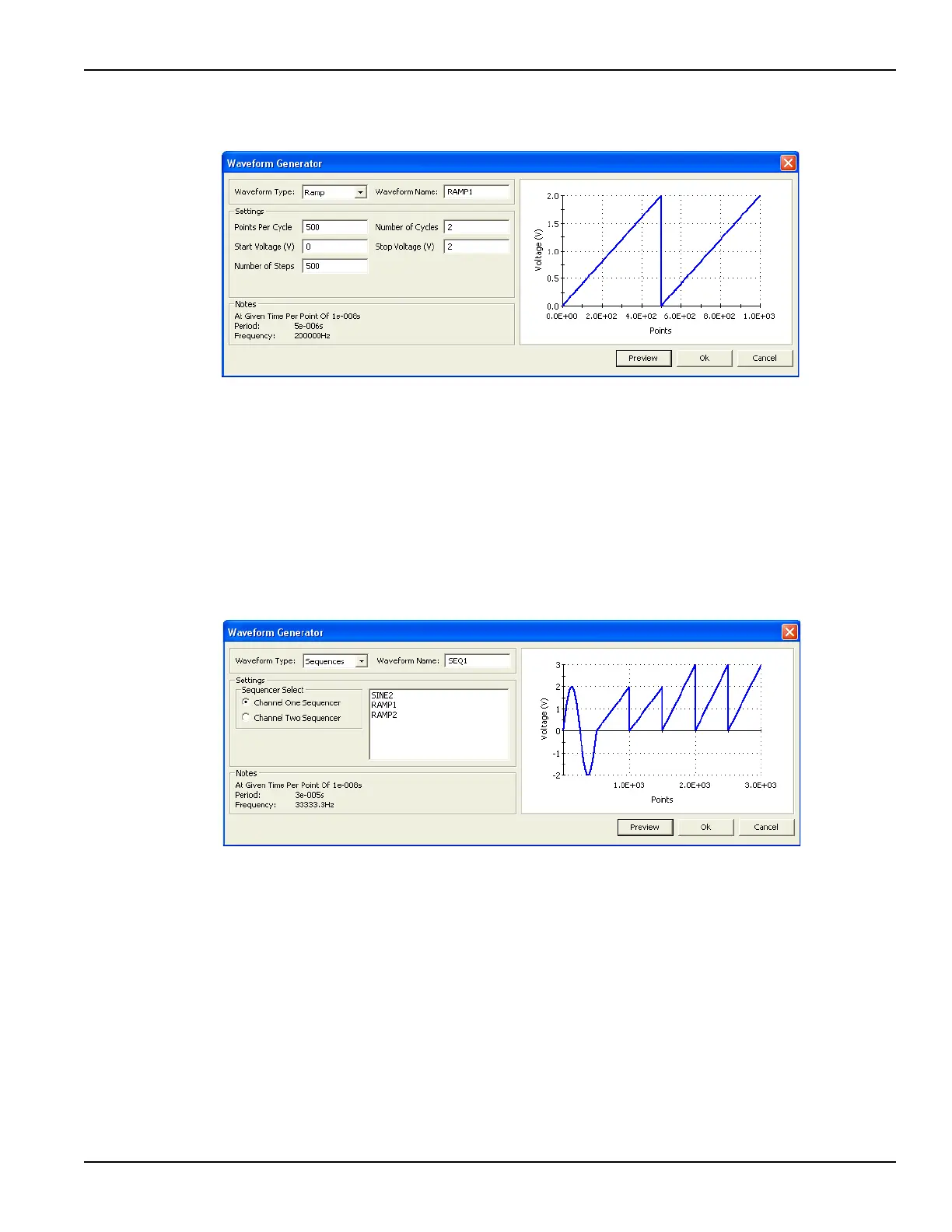

Figure 5-18
Ramp waveform (default settings)
Sequences waveform
An example of a sequences waveform is shown in Figure 5-19. The waveform for this example is
named SEQ1, but can be any name that is not already used in the Scratch Pad.
A sequence waveform consists of the waveforms that are present in the Channel 1 or Channel 2
Sequencer. Figure 5-7 shows the Sequencer for the two channels.
After selecting either Channel One Sequencer or Channel Two Sequencer, click Preview to
show the waveform. Clicking Ok places the waveform in the Scratch Pad.
Figure 5-19
Sequences waveform
