4-228 Service Manual

7462

Go Back

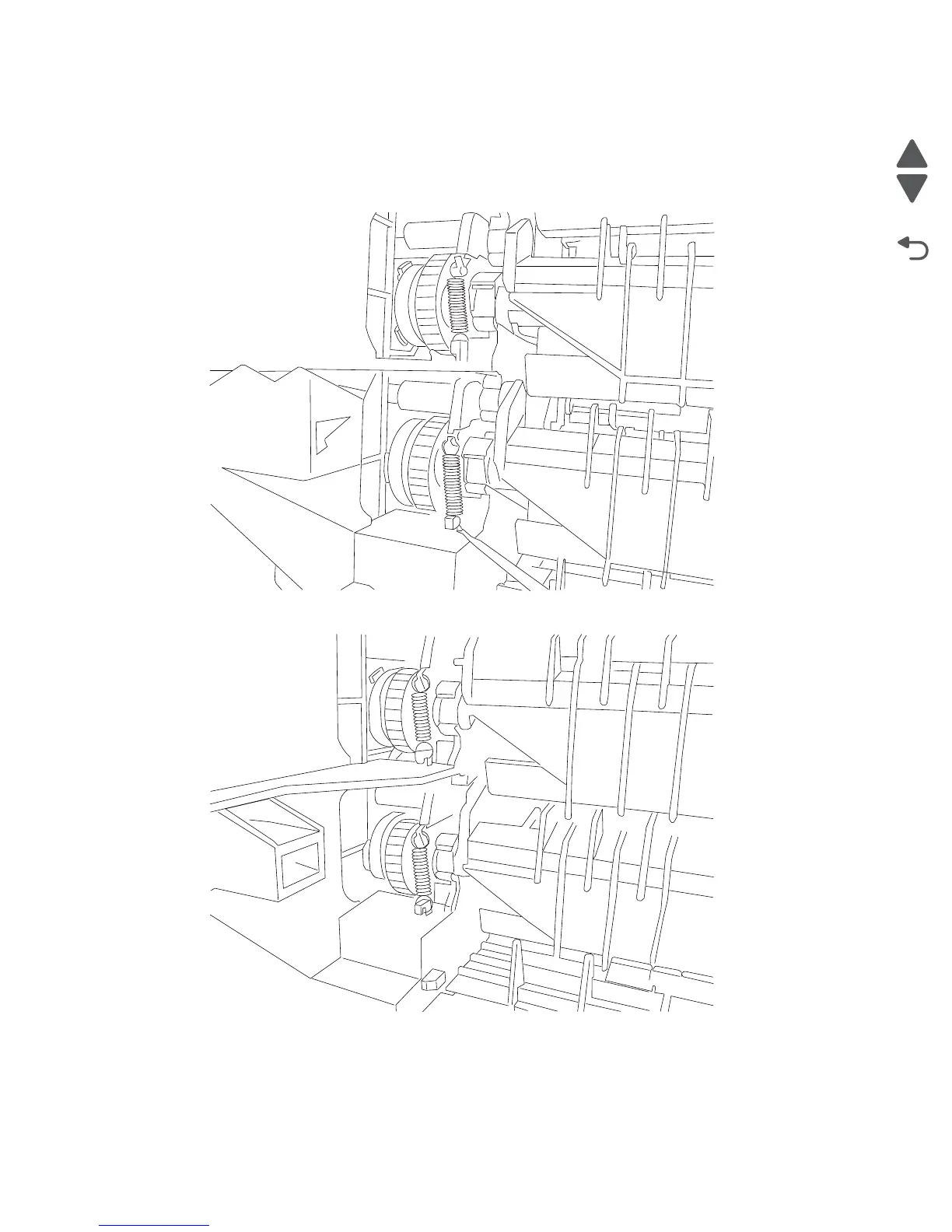

4-bin mailbox assembly spring removal

1. Remove the 4-bin mailbox assembly rear door assembly. See “4-bin mailbox assembly rear door

assembly removal” on page 4-222.

2. Using a spring hook or needlenose pliers, remove the spring off the hooks.
