215184 93 Revision A

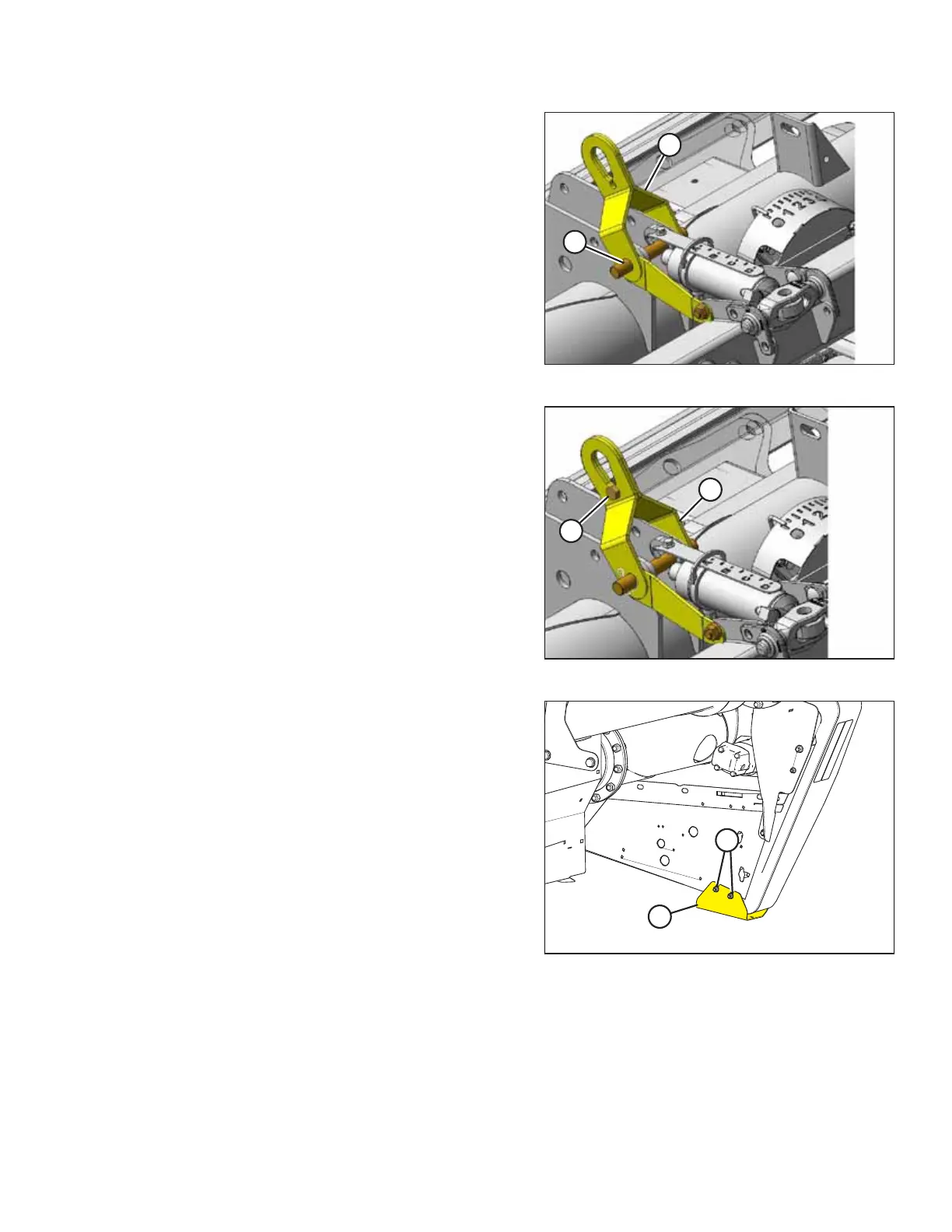

Figure 3.182: Lifting Brackets and Center-Link Pin
16. Attach brackets (A) to center-link pin (B) and reinstall
cotter pins.
Figure 3.183: Lifting Bracket Hardware
17. Reinstall bolt and nut (A) in lifting brackets (B). Tighten bolt.
Figure 3.184: Endshield Guards
18. Loosen two bolts (A) in right endshield guard (B) and
remove guard. Hardware can be removed when header
endshield is opened.
ASSEMBLING THE HEADER AND FLOAT MODULE
