215184 92 Revision A

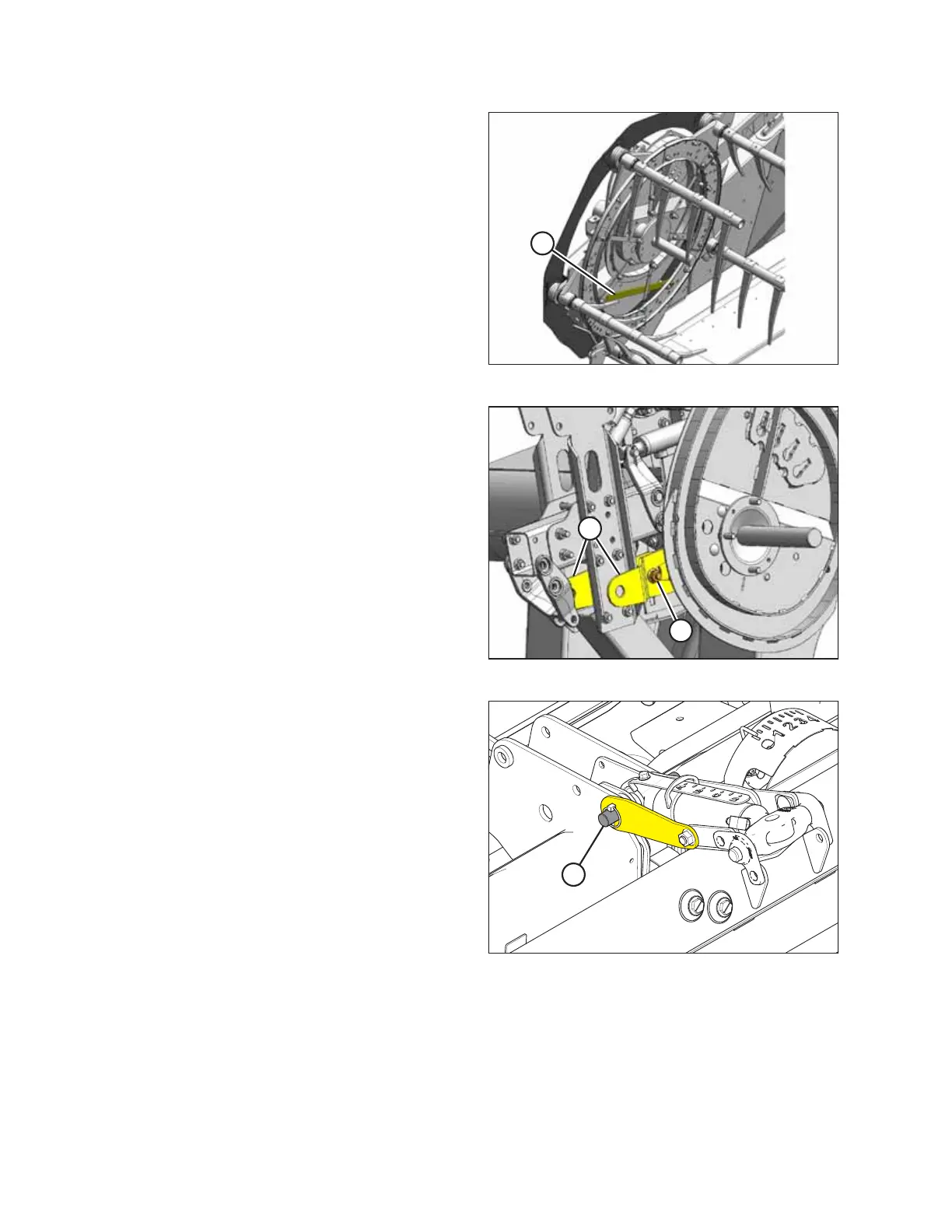

Figure 3.179: Reel Anti-Rotation Strap
12. Remove anti-rotation strap (A) between reel and endsheet.
Figure 3.180: Lifting Bracket
13. Loosen existing bolt (A) and disassemble lifting brackets (B).
14. Remove lifting brackets from the center reel support.
Figure 3.181: Center-Link Pin
15. Remove cotter pins from center-link pin (A). Do NOT
remove center-link pin or strap between header and float
module.
ASSEMBLING THE HEADER AND FLOAT MODULE
