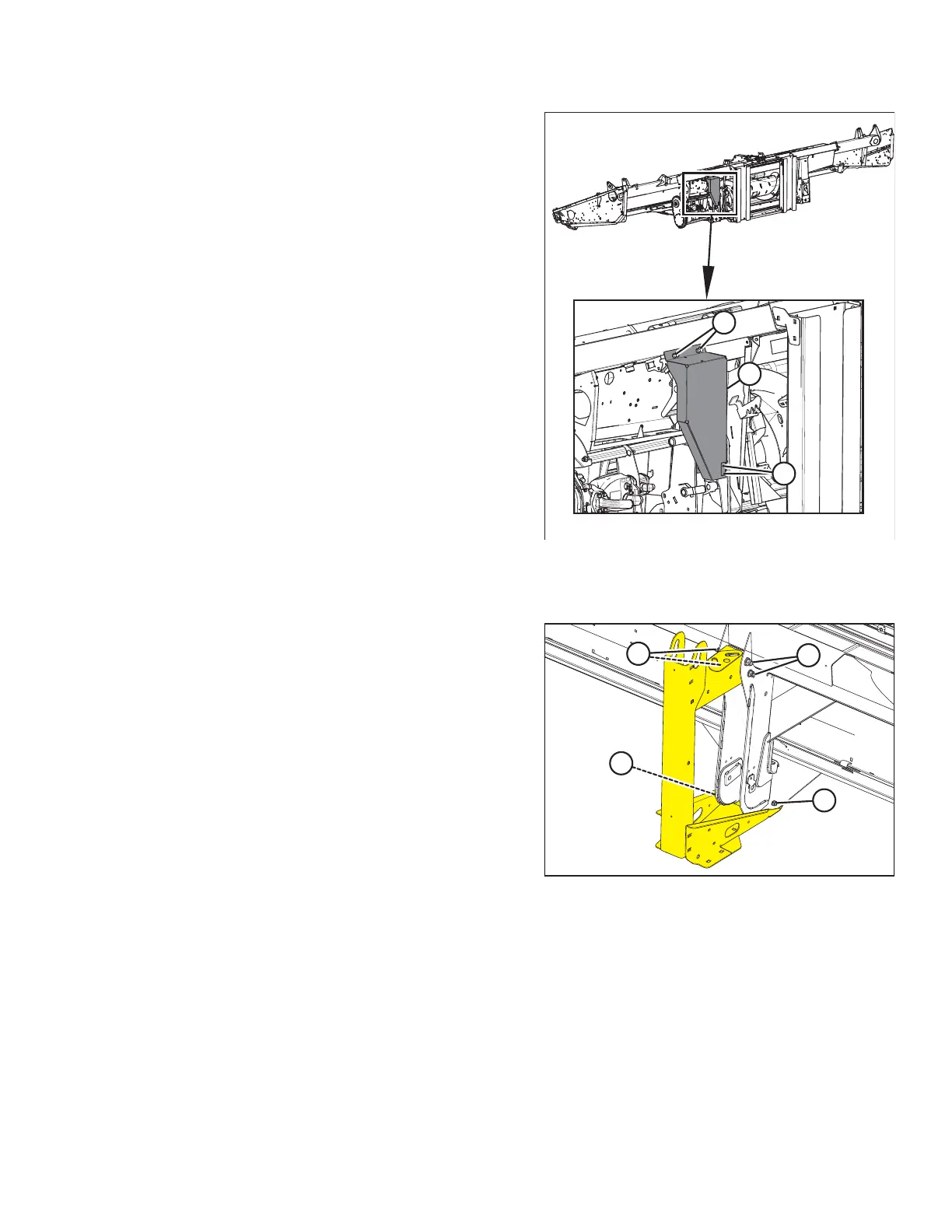

Figure 3.177: Coupler Cover
9. Remove two bolts (A) and loosen two bolts (B) securing
coupler cover (C) to the float module.
10. Remove the coupler cover.
Removing the outboard header legs
1013802
A
B
A
B
Figure 3.178: Shipping Stands at Outboard Header
Legs – Right Shown
11. Remove four bolts (A) and two bolts (B) from the shipping
stands at both outboard header legs. Remove stands.
ASSEMBLING THE HEADER AND FLOAT MODULE
