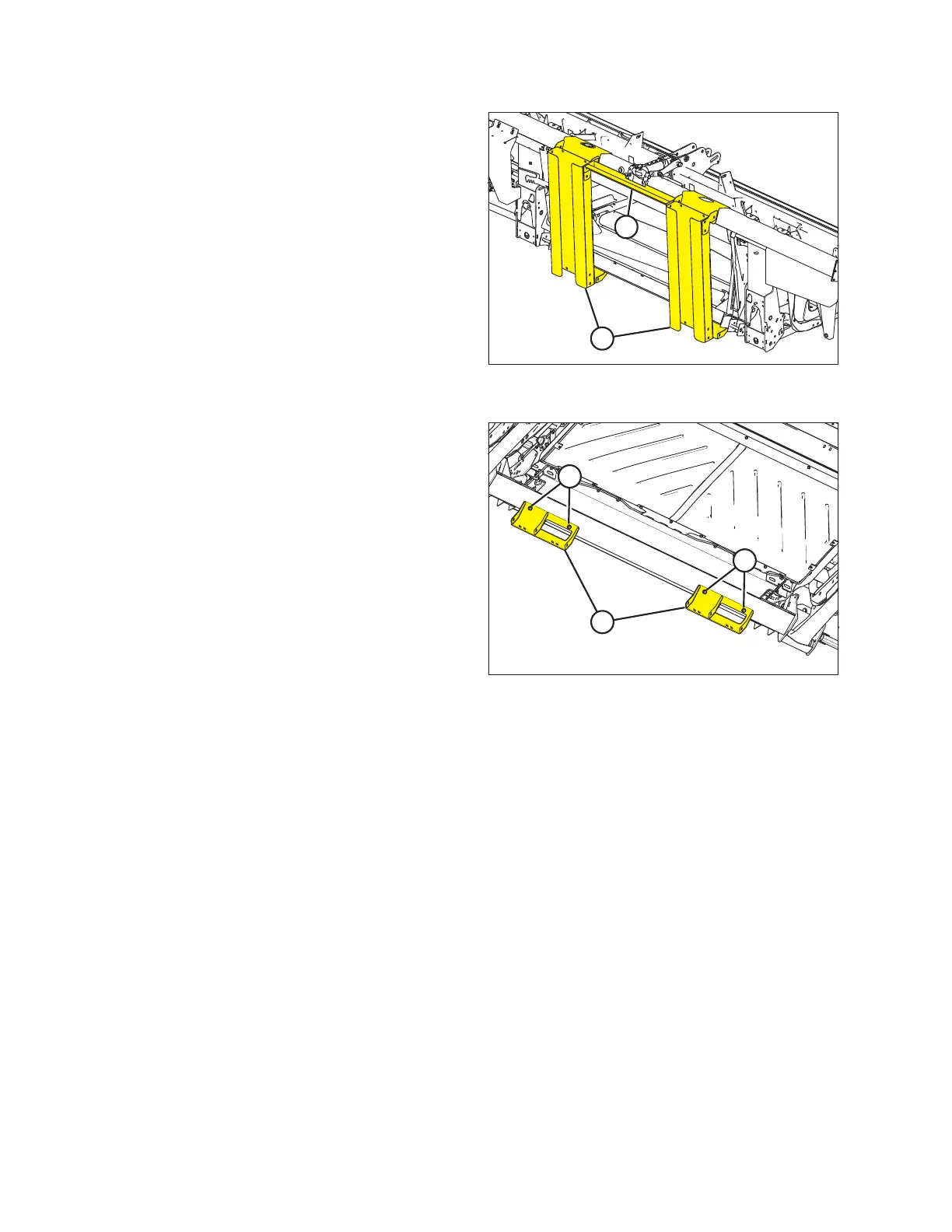

Figure 3.175: Upper Brace and Stand Support
Removal
6. Remove right and left fork channels (A).
7. Remove upper brace (B).
1015919
A
B
A
Figure 3.176: View from Below the Header
8. Remove four bolts (A) and remove shipping stands (B) from
the bottom of the float module.
