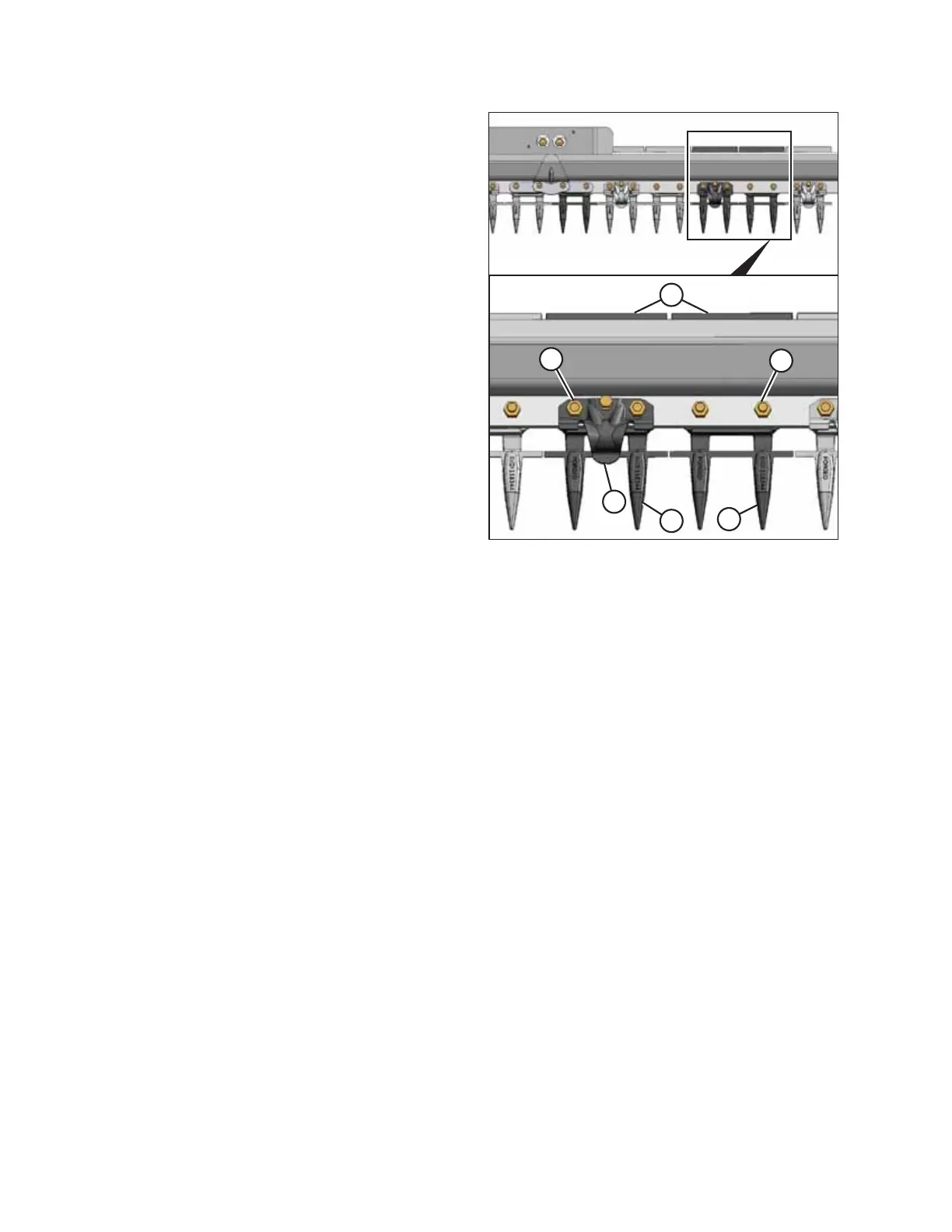

Figure 3.191: Wearplates and Guard
10. Install cutterbar wearplate (A), guard (B), and clip (C) with
two 7/16 x 1-1/2 in. long special carriage bolts (D) and nuts
at location shown. Tighten nuts to 68 Nm (50 lbf·ft).
Adjuster bolt should not require adjusting.
11. Install cutterbar wearplate (A) and guard (E) with two
7/16 x 1-1/2 in. long special carriage bolts (F) and nuts at
location shown. Tighten nuts to 68 Nm (50 lbf·ft).
